Beechcraft F33A Bonanza

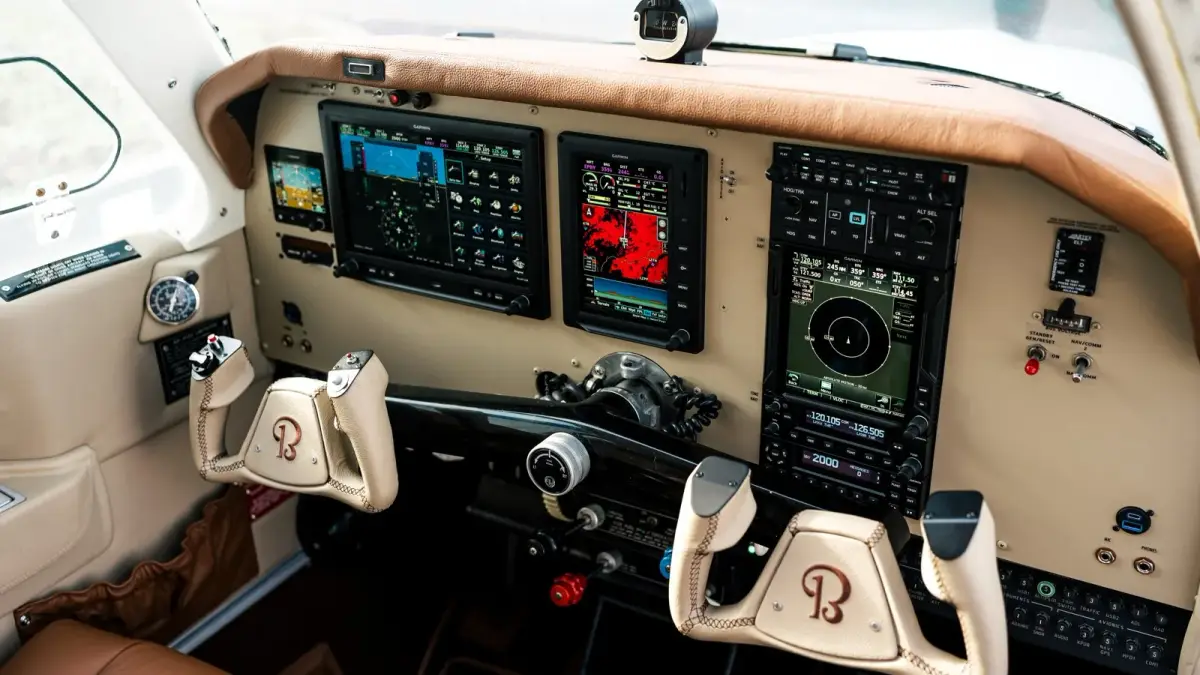

EC-LLHA Bonanza F33A rebuilt with a G3X glass panel, GFC 500 autopilot, leather interior and LED lighting.
- Aircraft
- Beechcraft F33A Bonanza
- Scope
- Avionics · Interior · Lighting
- Year
- 2023
- Location
- Kunovice, Czechia

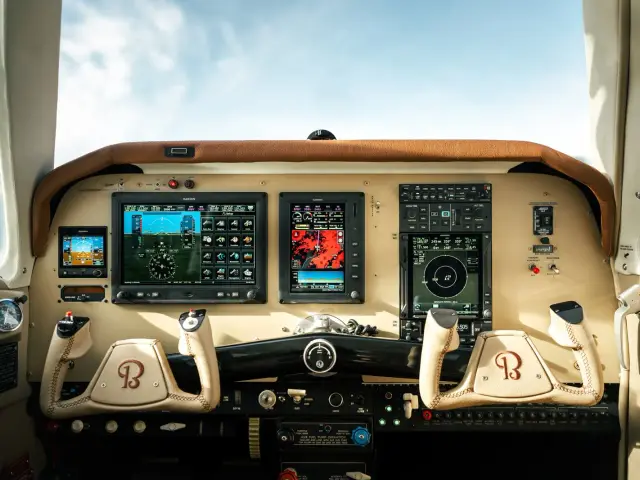

A complete makeover for a Bonanza F33A: a Garmin G3X glass cockpit with GFC 500 autopilot and GTN 750Xi navigator, a new leather interior with custom yokes and logo, and a full Whelen LED lighting set. A modern panel and a cabin to match.
Installed equipment
- Garmin GTX 345 ADS-B In/Out transponder
- AirTraffic AT-1 traffic awareness system
- Golze ADL200 weather receiver
- Garmin GSB 15 USB port
- Garmin WAAS antenna
- Garmin GTP 59 OAT probe
- CiES fuel senders

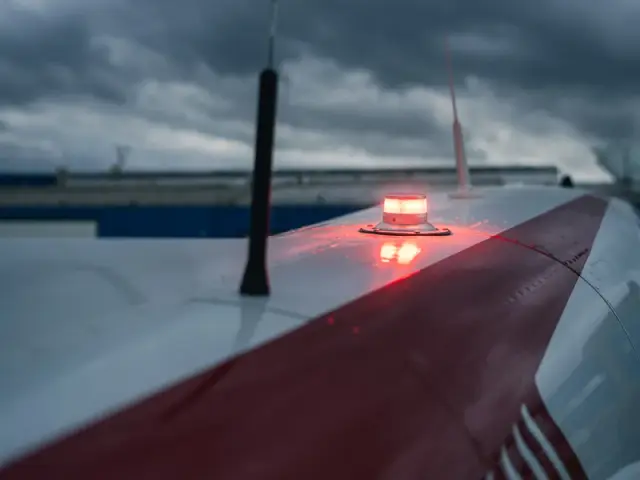

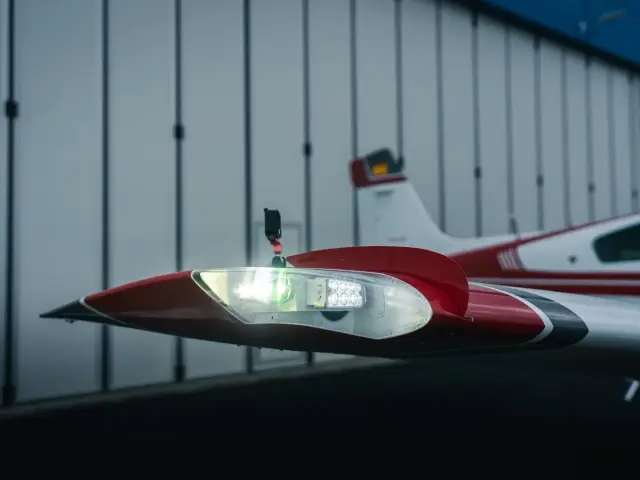

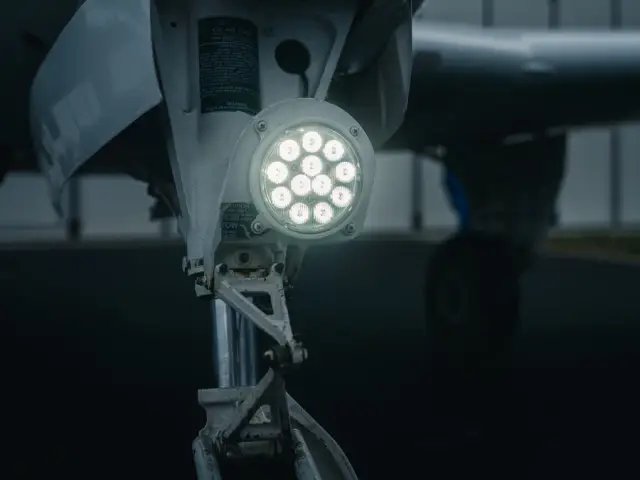

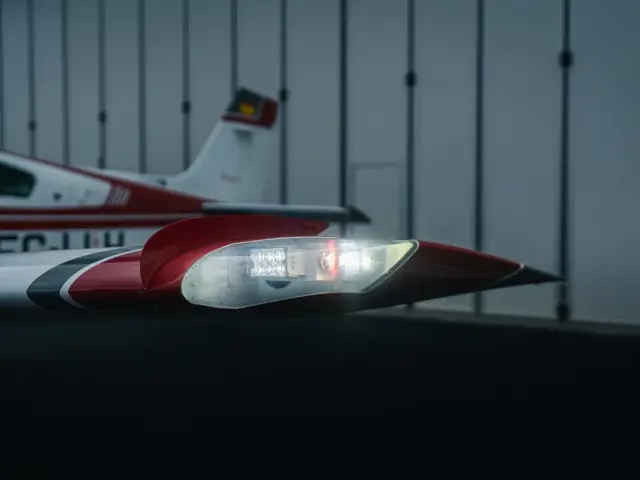

- Whelen LED landing, taxi, beacon, position and visual awareness lights

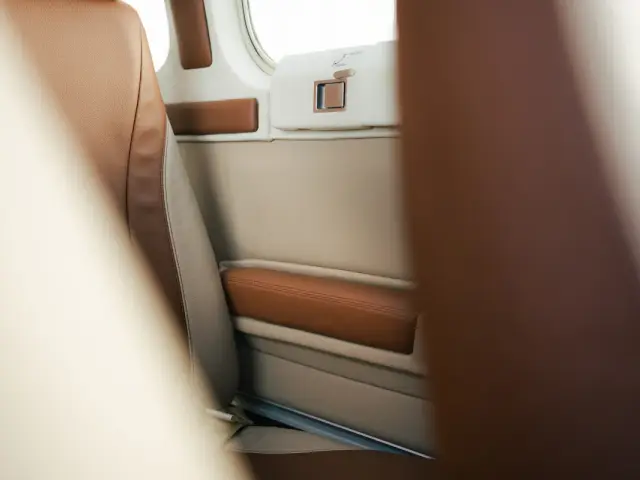

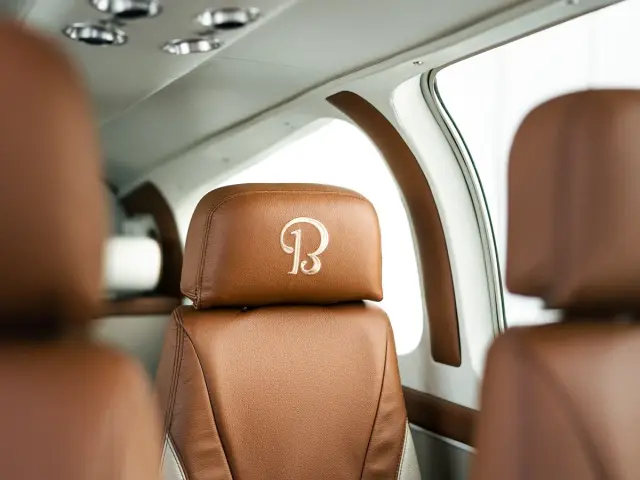

- New leather seats, armrests and control yokes
- Custom logo
- New glareshield
Quick view
Flight displays
Garmin G3X Touch
Touchscreen PFD/MFD/EIS display for portrait or landscape panels, with an interactive moving map and ADS-B In traffic and weather. Discontinued by Garmin; AXIS is the successor.
GPS / NAV / COM
Garmin GTN 750Xi
Touchscreen GPS/NAV/COM navigator on the Garmin bus.
Autopilot
Garmin GFC 500
Digital autopilot that works with the new Garmin displays and holds altitude and course, with an optional yaw damper servo.
Standby instruments
Garmin G5
Electronic flight instrument used here as a backup next to the main display.
Panel and production

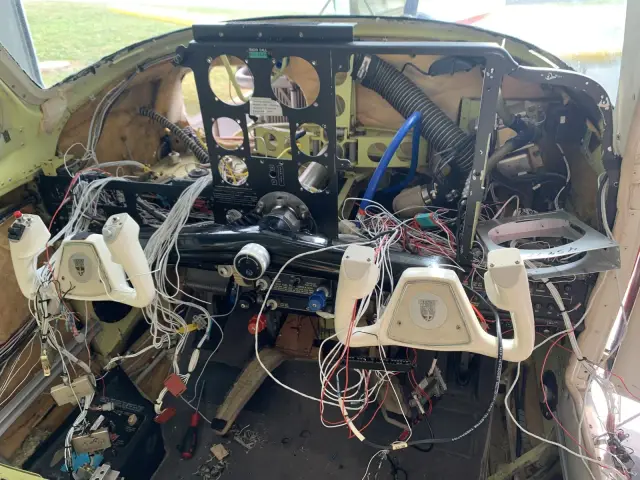

- Instrument panel produced and installed

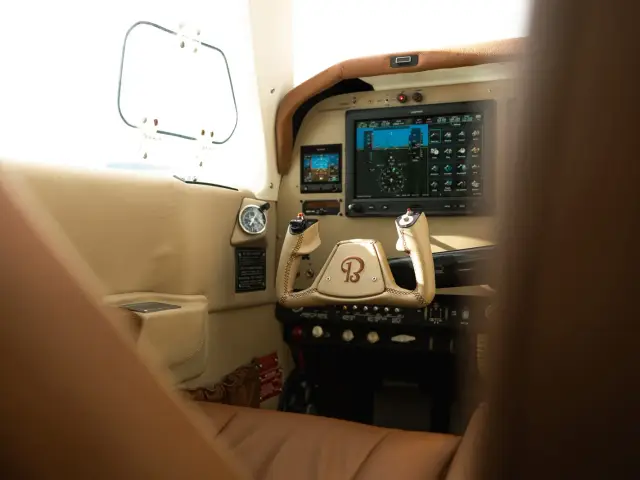

- Interior designed, produced and installed
- New leather seat upholstery and armrests

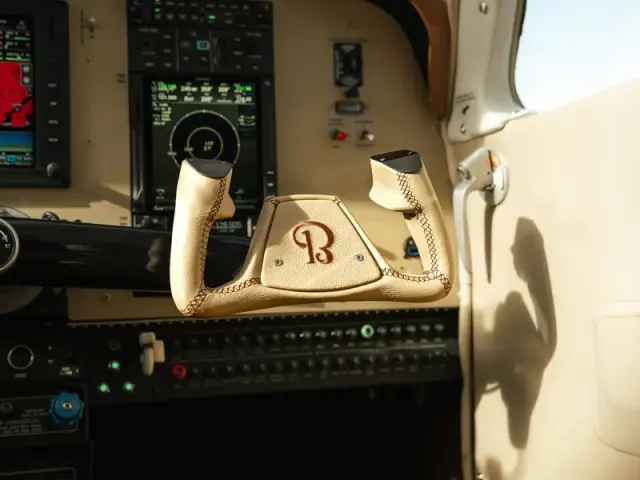

- New control yoke design and glareshield
Certification and paperwork
- Electrical load change calculation
- Magnetic compensation
- Fuel tanks calibration
- Pitot-static check and IFR testing
- Weight and balance check
