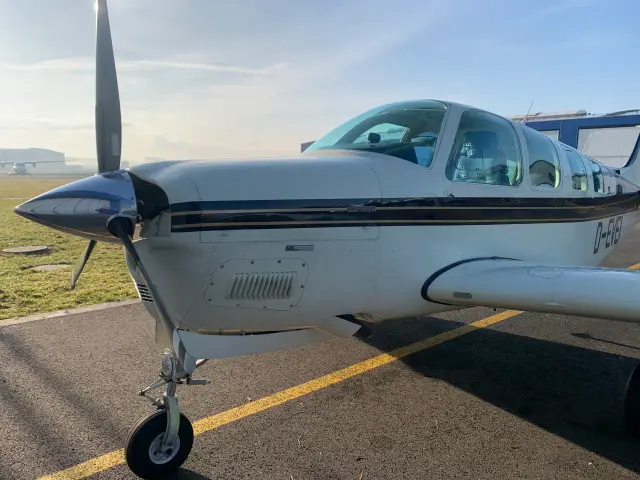

Beechcraft A36 Bonanza
D-EVEIFrom steam gauges to a dual GI 275 IFR panel with a GTN 750Xi navigator.
- Aircraft
- Beechcraft A36 Bonanza
- Scope
- Avionics · Instrument panel
- Year
- 2023
- Location

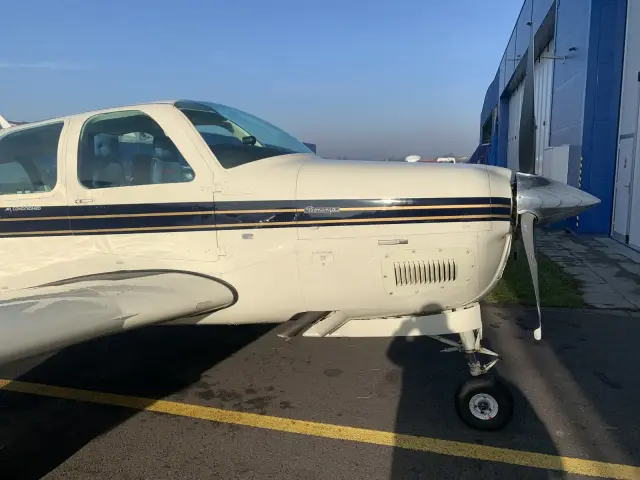

- Kunovice, Czechia

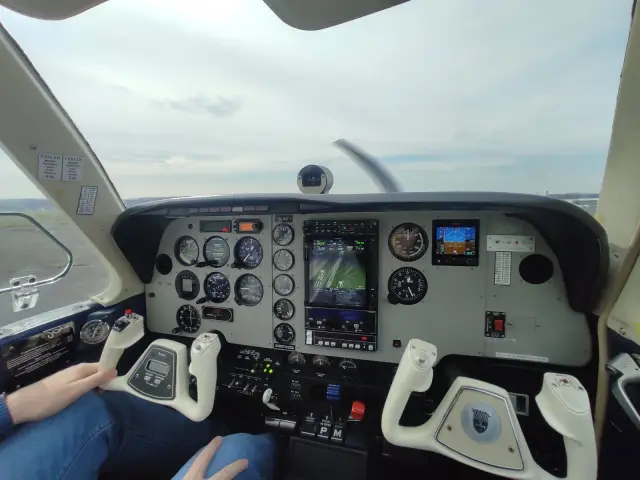

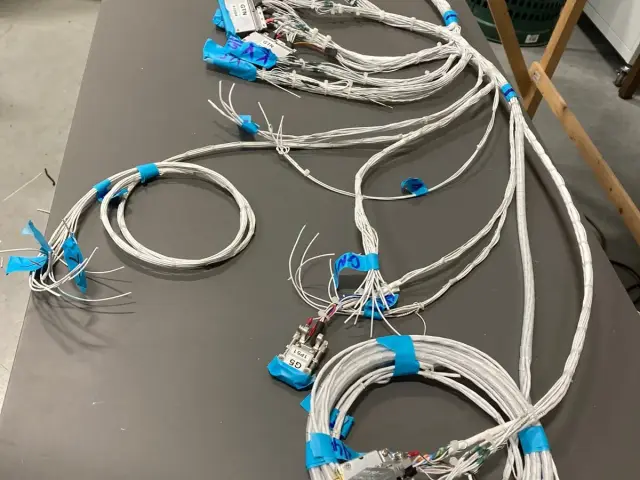

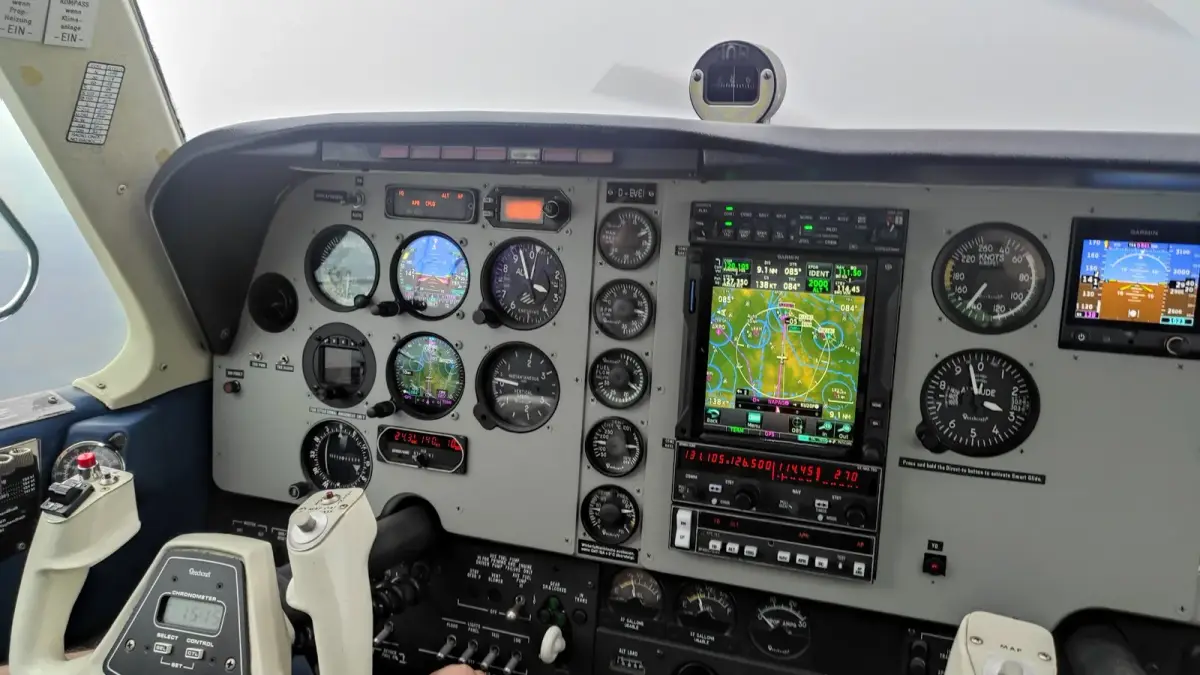

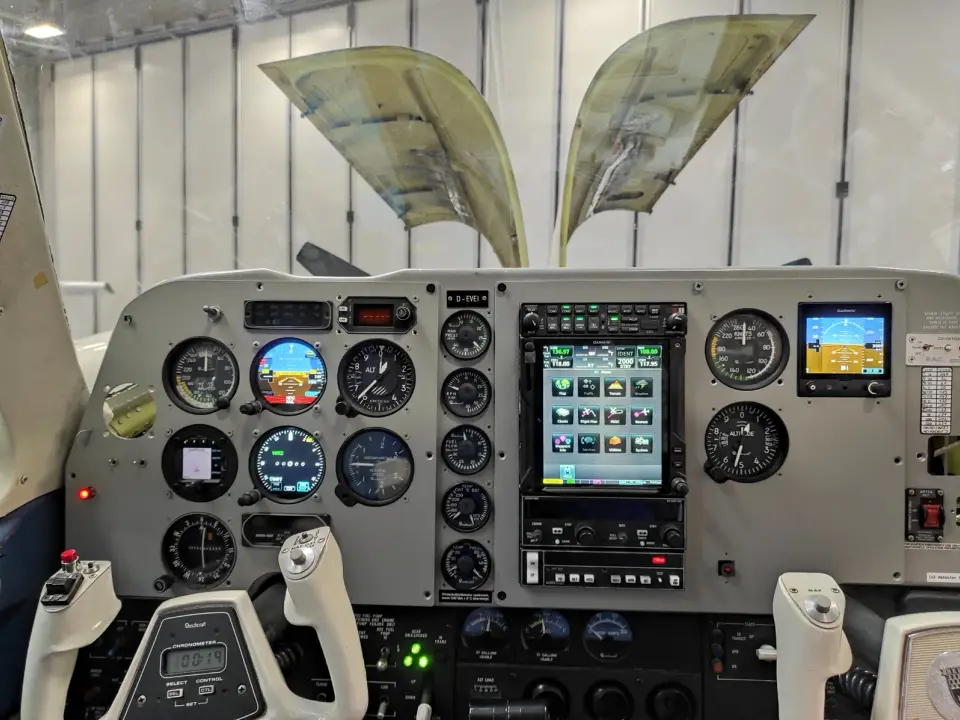

This A36 Bonanza traded its round gauges for a modern Garmin IFR panel: two GI 275 instruments, a GTN 750Xi navigator, a GMA 345 audio panel and a GTX 345R transponder. Our workshop built the new instrument panel and wiring in Kunovice and finished the installation with all flight checks.

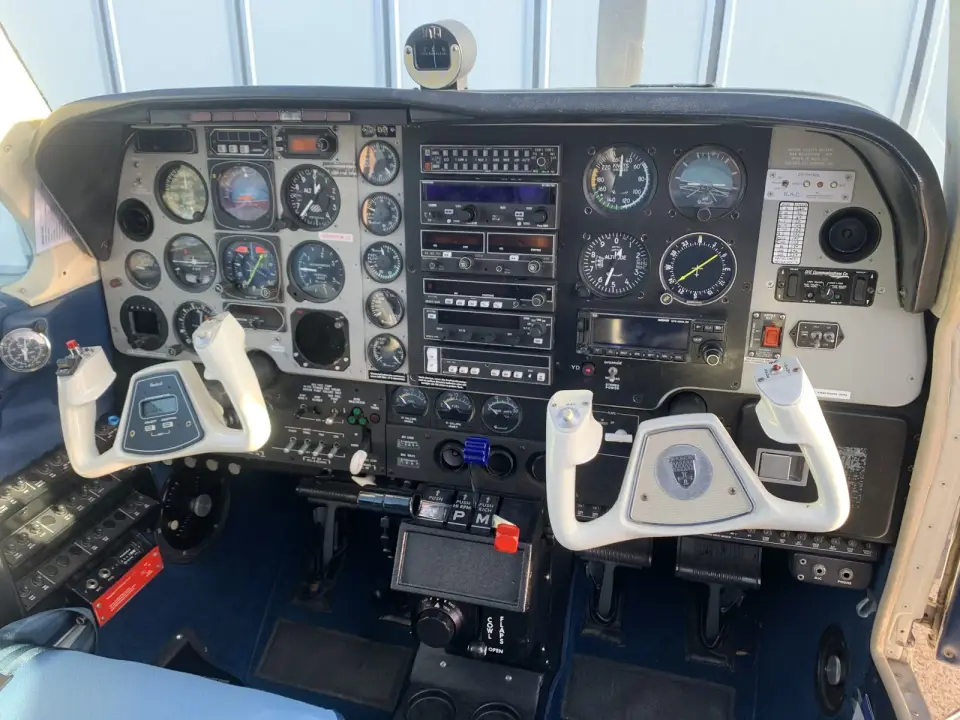

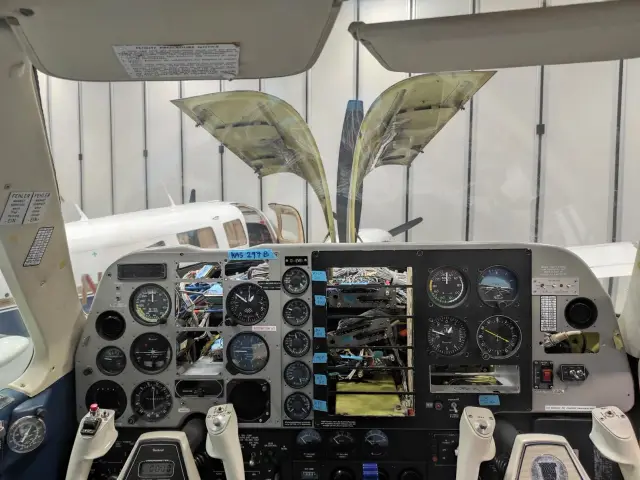

Before and after
Installed equipment
- COM antenna installation
Quick view
Standby instruments
Garmin GI 275
Electronic instrument for primary or standby attitude, airspeed and altitude, with an autopilot interface.
Standby instruments
Garmin G5
Electronic flight instrument used here as a backup next to the main display.
GPS / NAV / COM
Garmin GTN 750Xi
Touchscreen GPS/NAV/COM navigator on the Garmin bus.
Transponder / ADS-B
Garmin GTX 345R
Remote-mount transponder with ADS-B Out; adds ADS-B In traffic and weather.
Panel and production

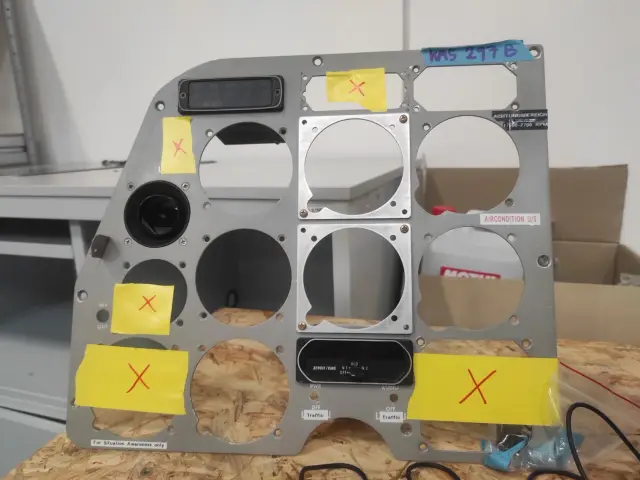

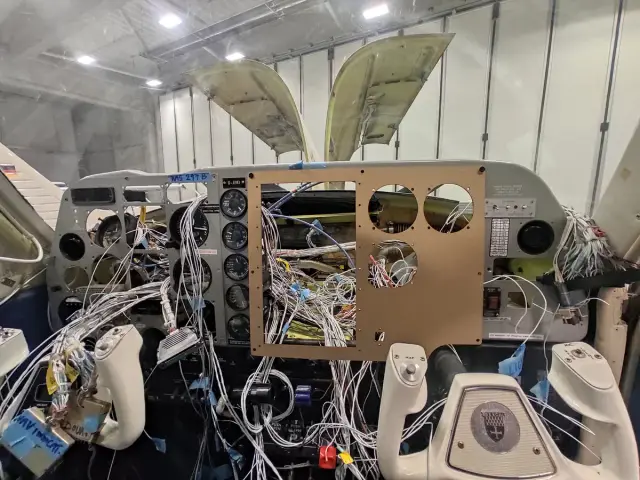

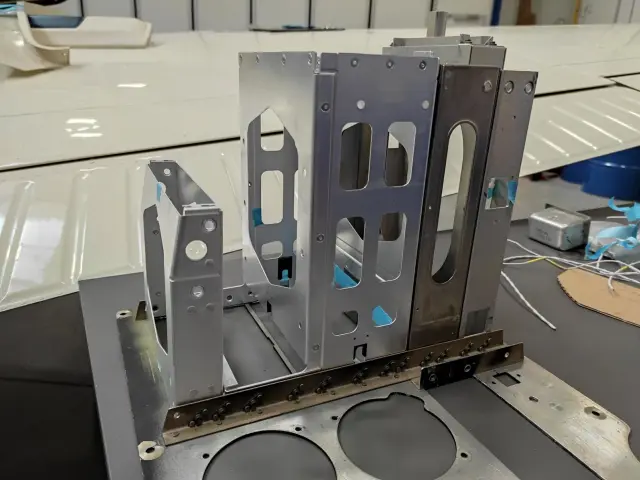

- Custom instrument panel produced and installed in our own workshop
- GI 275 as primary flight display with autopilot interface
- Second GI 275 as standby attitude and HSI, Garmin G5 certified as ADI
Certification and paperwork
- Electrical load change calculation
- Magnetic compensation
- Pitot-static check and IFR testing
- Weight and balance check

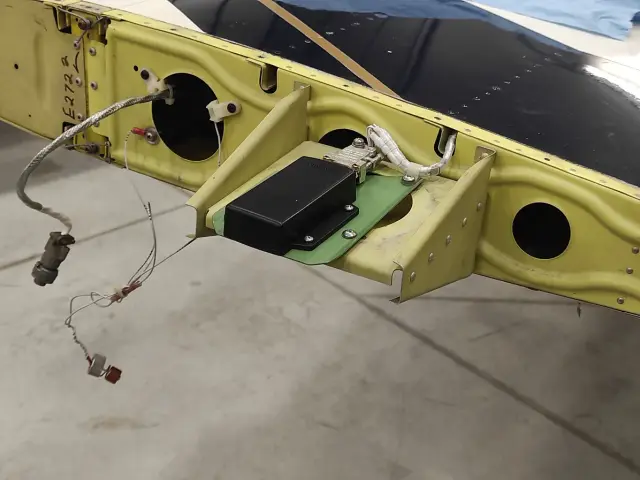

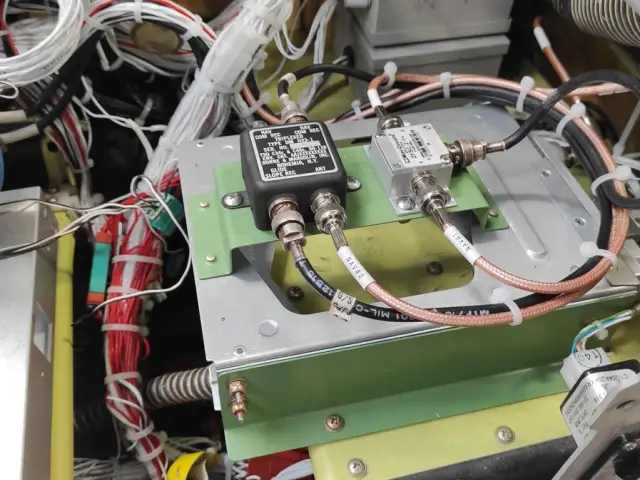

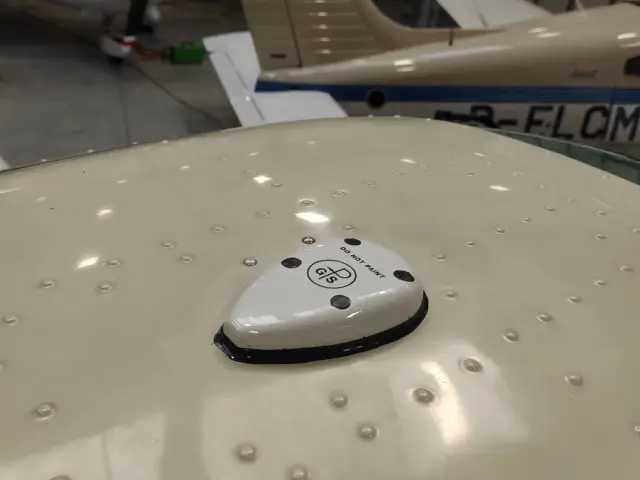

Project photos
From the owner
“We are very satisfied with the installation. Thanks to AIRTEAM for the outstanding cooperation.”
