JETPOD
- Detection up to 340 km
- Jet carriage above 300 kt
- EO/IR beyond 50 km by day
- MIL-STD-810G
Detect. Track. Configure today, re-role tomorrow. JETPOD puts EO/IR, SAR/GMTI radar and SIGINT in one modular pod for fast-moving platforms such as fixed-wing aircraft and UAVs, delivering real-time intelligence, long-range surveillance and rapid deployability.
Mission profiles
Border and maritime ISR
Long-range radar search and EO/IR identification at jet speed over sea and border areas.
Convoy and route overwatch
Watch the route ahead and around a convoy, and pass changes to the ground in real time.
SAR cueing
Cover a large search area fast and cue rescue assets onto what the sensors find.
SIGINT escort
COMINT and RF direction finding alongside the imaging sensors on the same sortie.
Sensors and systems
Long-range EO/IR
High-performance turret for day and night imaging: visibility beyond 50 km by day and 20 km at night or in haze.
SAR/GMTI radar
All-weather imaging and moving-target detection, with detection and surveillance up to 340 km.
COMINT and RF DF
Signals payloads that intercept and locate emitters.
AIS–CAM link
Vessel identity from AIS tied to the camera picture.
Encrypted datalinks
Sensor video and metadata to the ground in real time.
Built for speed
Structure and aerodynamics designed by AIR TEAM Engineering for jet carriage above 300 kt, rugged to MIL-STD-810G.
Gallery

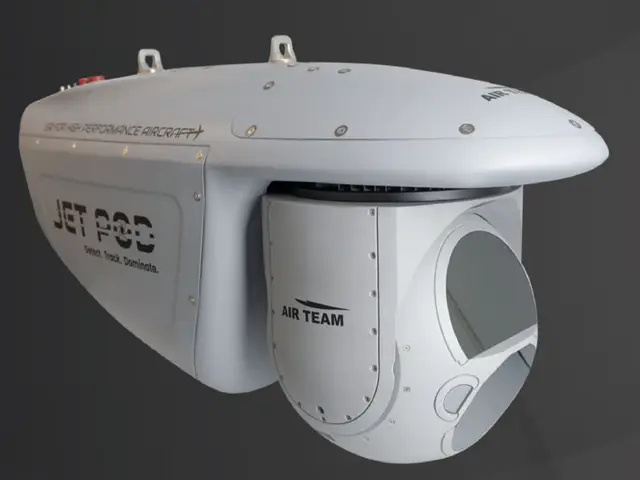

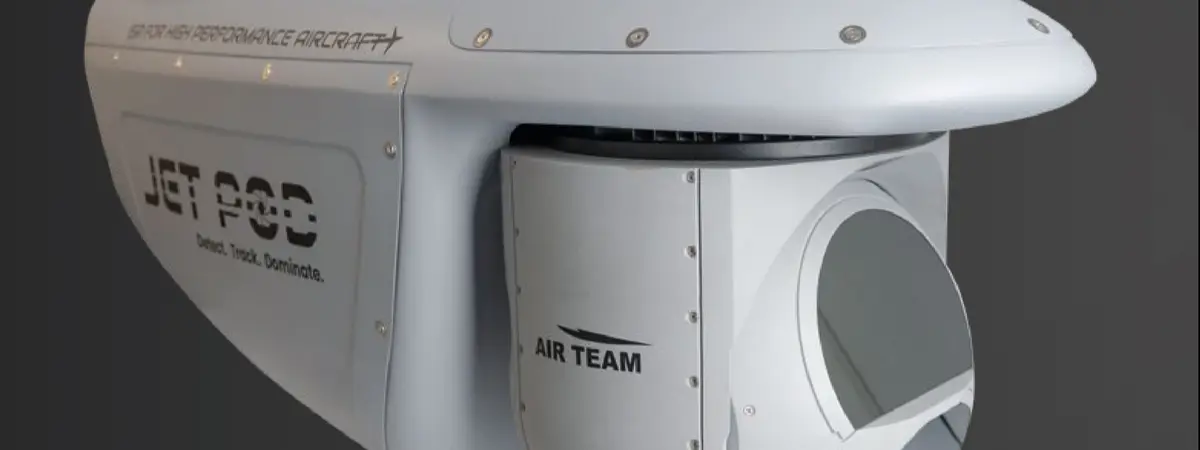

JETPOD with EO/IR turret

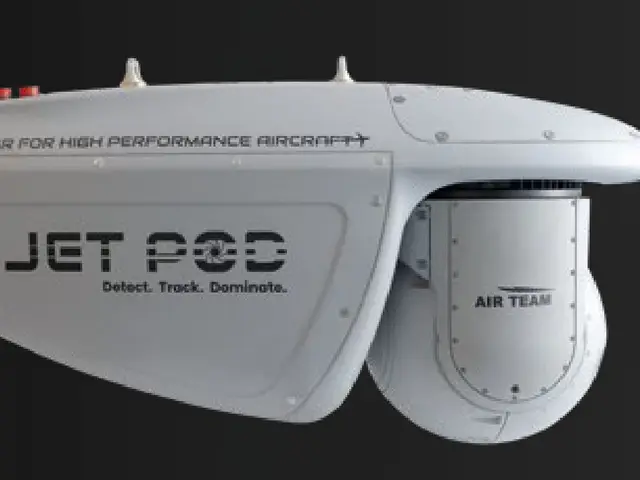

Side profile

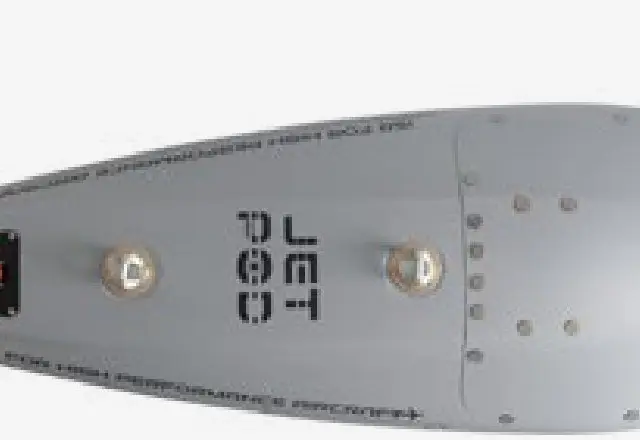

Top view
Key specifications
At a glance
- Sensors
- EO/IR, SAR/GMTI radar, SIGINT
- Detection and surveillance
- Up to 340 km
- EO/IR visibility
- Beyond 50 km by day, 20 km at night or in haze
- Carriage
- Jet carriage above 300 kt
Platform and environment
- Platforms
- Fast-moving fixed-wing aircraft and UAVs
- Installation
- Rapid installation on high-performance aircraft
- Payload options
- EO/IR, SAR/GMTI radar, COMINT/RF DF, AIS–CAM link, encrypted datalinks
- Environmental
- MIL-STD-810G
Certification and support
Flight testing
Flight test of the pod on your aircraft before it enters service.
Operator and mission training
Training for the crews who fly and exploit the pod.
Maintenance and upgrades
Scheduled maintenance and payload upgrades through the life of the pod.
Continuous enhancement
New sensors and software as your mission and threats change.
AIR TEAM Engineering designs the change under EASA design approval EASA.21J.849. AIR TEAM service installs and maintains it at Kunovice (LKKU) under EASA Part-145 CZ.145.0094 and Military Part-145 CZE.145.1004, and manufactures parts under POA CZ.21G.0075. Defence quality management is certified to NATO AQAP 2110, the quality system to ISO 9001:2015. ITAR and military trade licences are in place. All approvals →
Planning a mission-system programme?
Tell us the platform and the mission. We reply within 1 business day.
