Piper PA-34-220T Seneca V

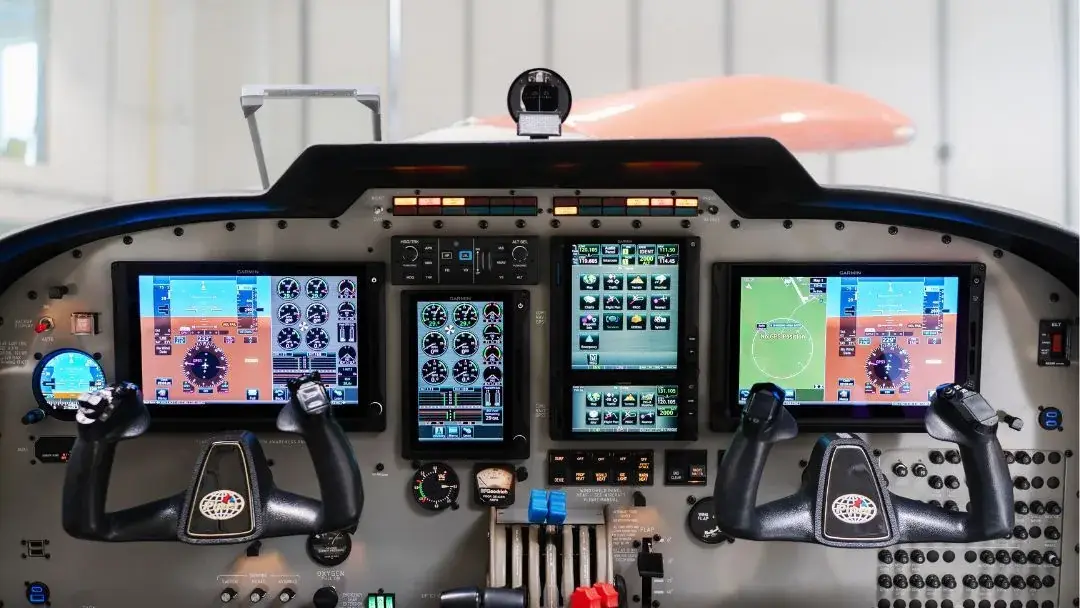

Dual G500 TXi, dual GTN Xi, GFC 500 autopilot and GWX 75 weather radar in a Seneca V.
- Aircraft
- Piper PA-34-220T Seneca V
- Scope
- Avionics · Autopilot · Glass panel
- Location
- Kunovice, Czechia

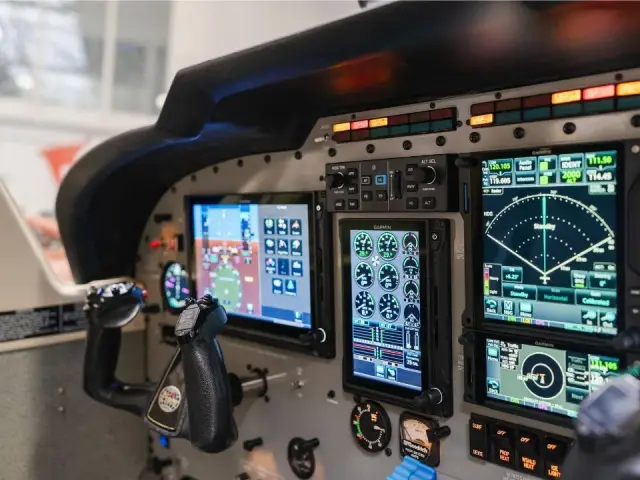

A Seneca V now has a complete Garmin glass cockpit: dual G500 TXi displays with an engine page, a GTN 750Xi and a GTN 650Xi, a GFC 500 autopilot, ADS-B and a GWX 75 weather radar. Pilot situational awareness and safety margins move up a full generation.
Installed equipment
- Garmin G500 TXi 7" portrait engine display
- Garmin GSB 15 USB port
- Garmin GA 35S GPS/WAAS antenna
Quick view
Flight displays
Garmin G500 TXi
Touchscreen PFD/MFD line built on the earlier G500 series, configurable to the available panel space.
GPS / NAV / COM
Garmin GTN 750Xi
Touchscreen GPS/NAV/COM navigator on the Garmin bus.
Autopilot
Garmin GFC 500
Digital autopilot that works with the new Garmin displays and holds altitude and course, with an optional yaw damper servo.
Transponder / ADS-B
Garmin GTX 345R
Remote-mount transponder with ADS-B Out; adds ADS-B In traffic and weather.
Standby instruments
Garmin GI 275
Electronic instrument for primary or standby attitude, airspeed and altitude, with an autopilot interface.
Certification and paperwork
- Weight and balance check
- Pitot-static check and IFR testing
- Magnetic compensation
- Fuel tank calibration

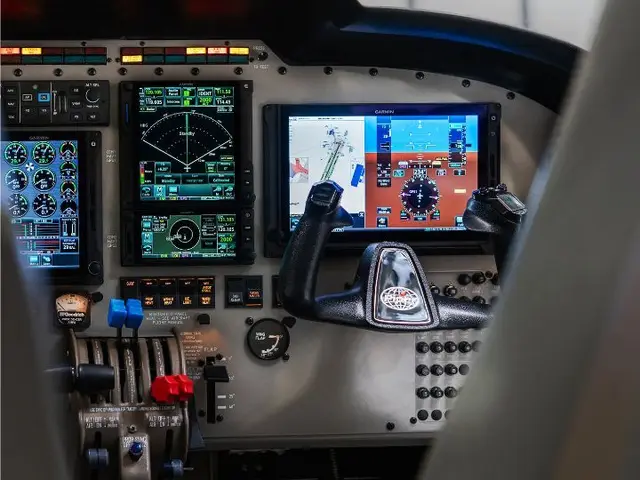

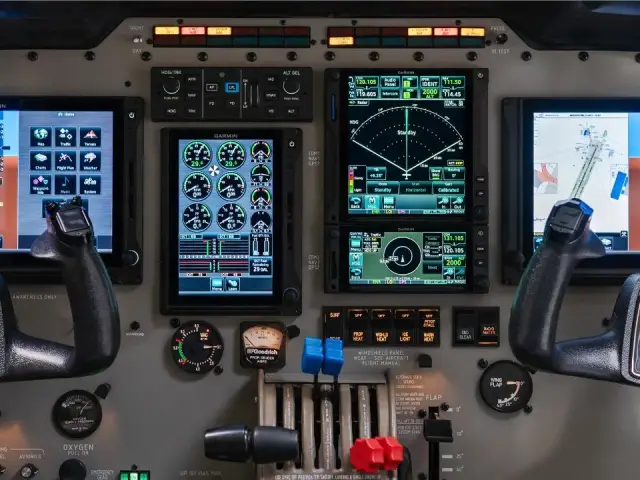

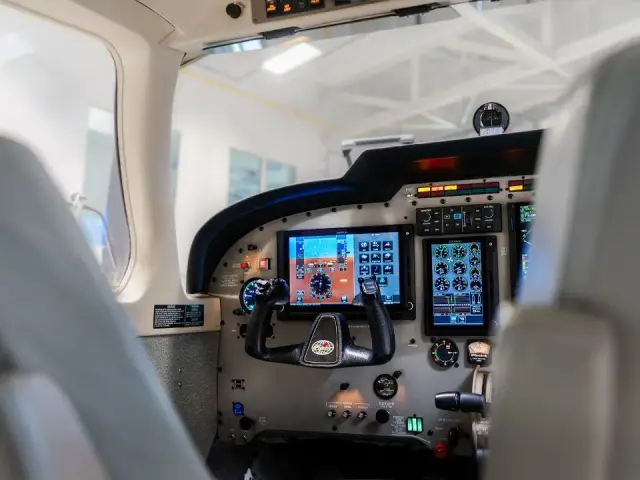

Project photos
Want the same for your Piper PA-34 Seneca?
See the upgrade paths, starting prices and typical downtime for your type, or talk to our sales team directly.
from €30,000 excl. VAT
Tell me what you want from your new panel and I will put together the right package for your aircraft.
