Mooney M20J
HB-DFUGlass panel, GFC 500 autopilot and a new leather interior in one work order.
- Aircraft
- Mooney M20J
- Scope
- Avionics · Autopilot · Interior
- Year
- 2023
- Location
- Kunovice, Czechia

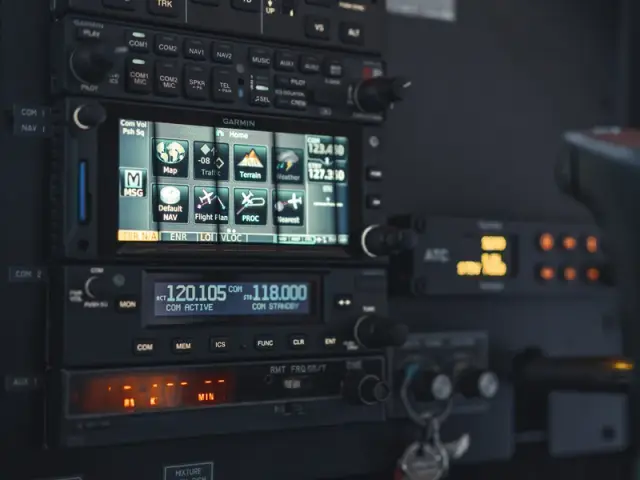

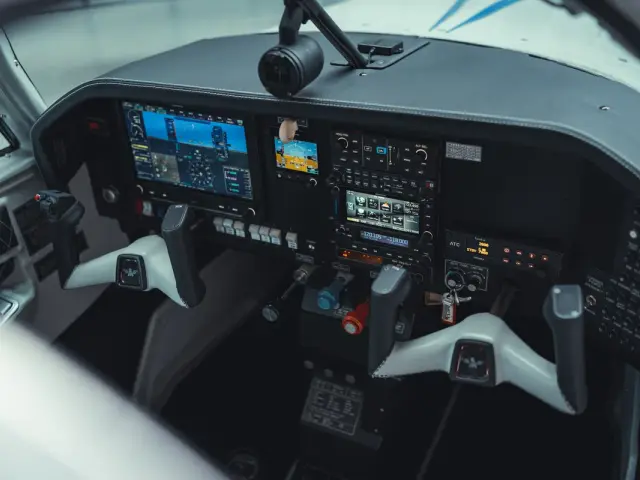

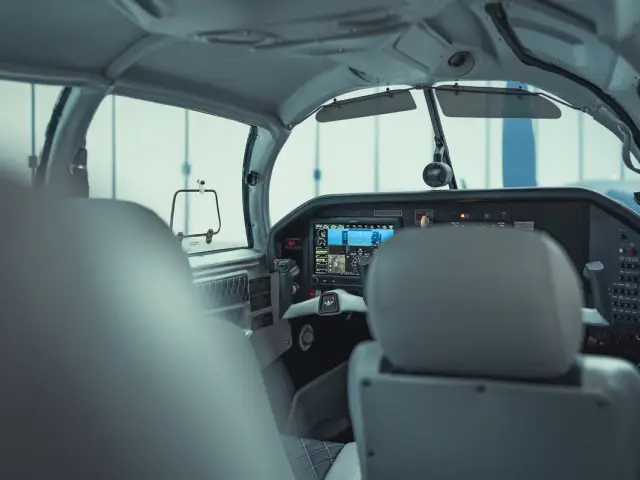

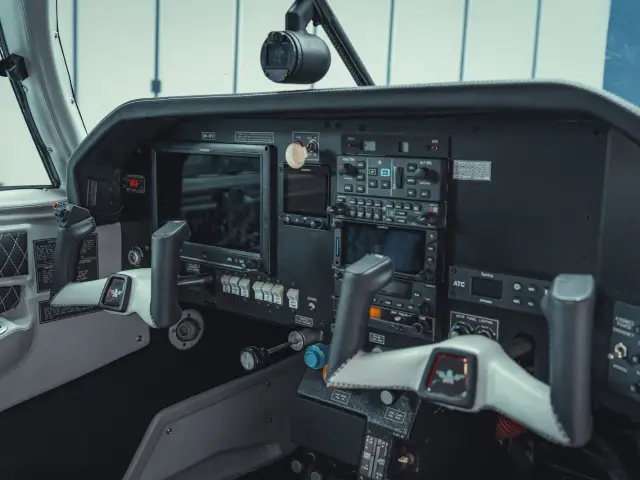

A Mooney M20J left us with a G3X Touch flight deck with engine indication, a GTN 650Xi, a GFC 500 autopilot and a G5 standby, plus new leather seats, yokes and glareshield. The panel was designed and produced in our own workshop and the interior was done in one go.
Installed equipment
- Garmin GTR 225A COM
- Garmin GSB 15 USB port
- CiES fuel level senders
- COM antenna replacement
- Garmin GPS WAAS antenna
- Whelen LED beacon, navigation and strobe lights
- Reiff preheater system
Quick view
Flight displays

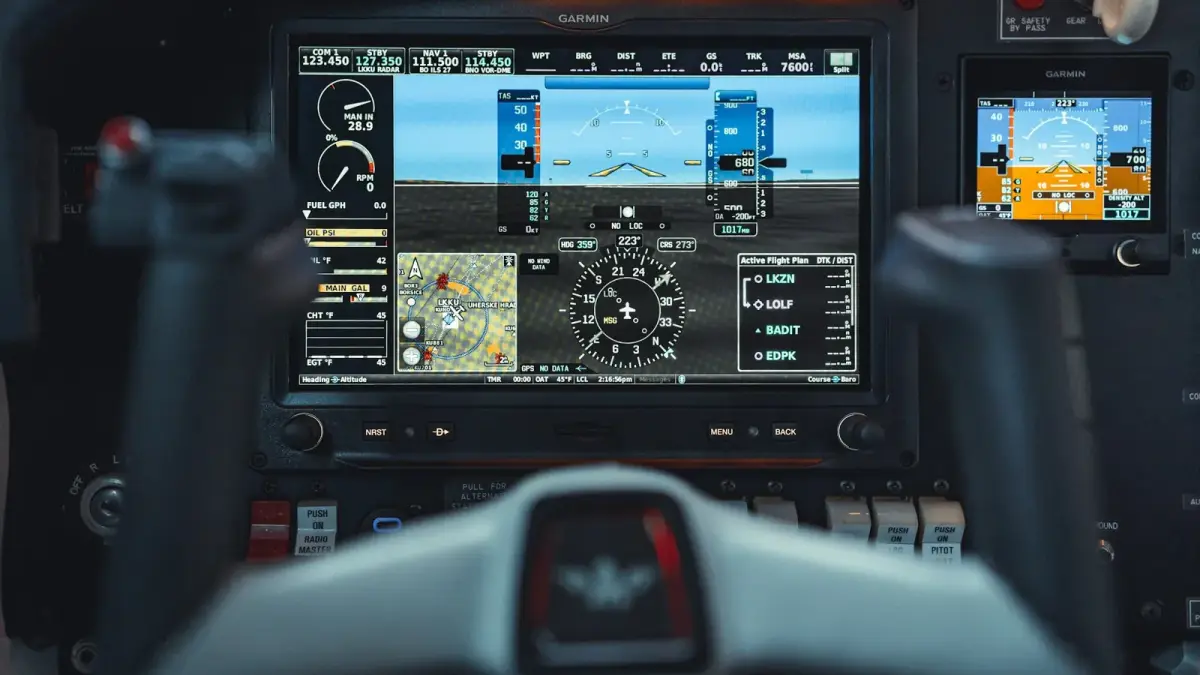

Garmin G3X Touch
Touchscreen PFD/MFD/EIS display for portrait or landscape panels, with an interactive moving map and ADS-B In traffic and weather. Discontinued by Garmin; AXIS is the successor.
Autopilot
Garmin GFC 500
Digital autopilot that works with the new Garmin displays and holds altitude and course, with an optional yaw damper servo.
Standby instruments
Garmin G5
Electronic flight instrument used here as a backup next to the main display.
Panel and production
- Instrument panel designed, produced and installed in-house
- Vacuum system, KX 155 NAV/COM and mechanical gyros removed

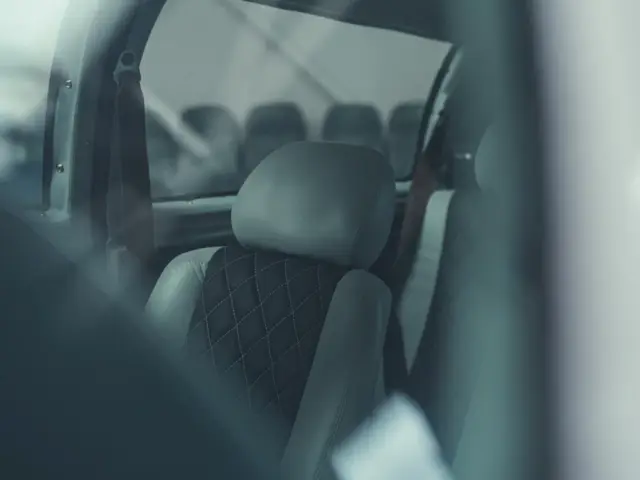

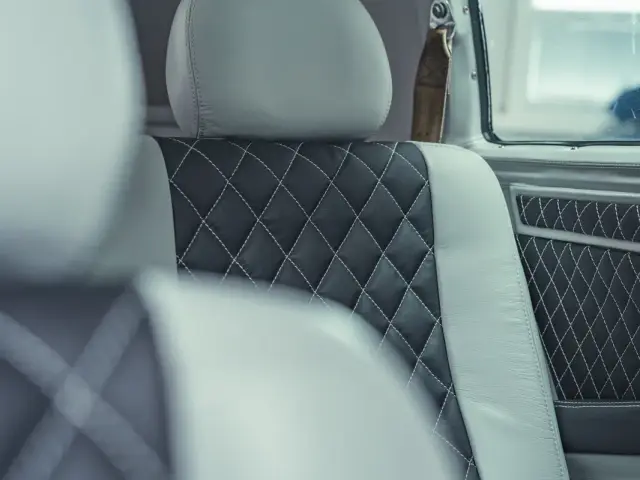

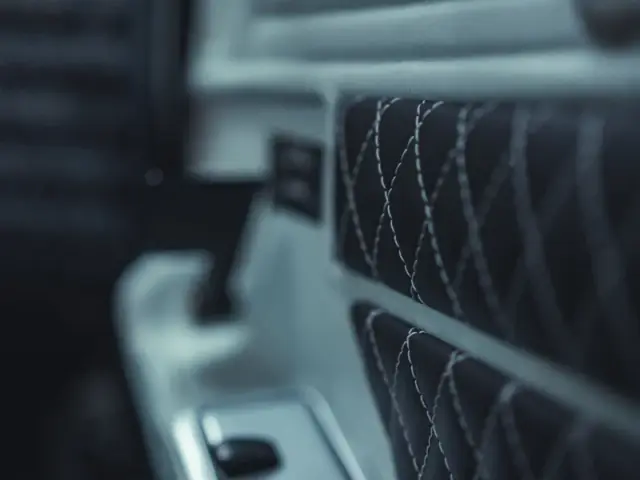

- New leather seat upholstery and armrests, seat headrest modification

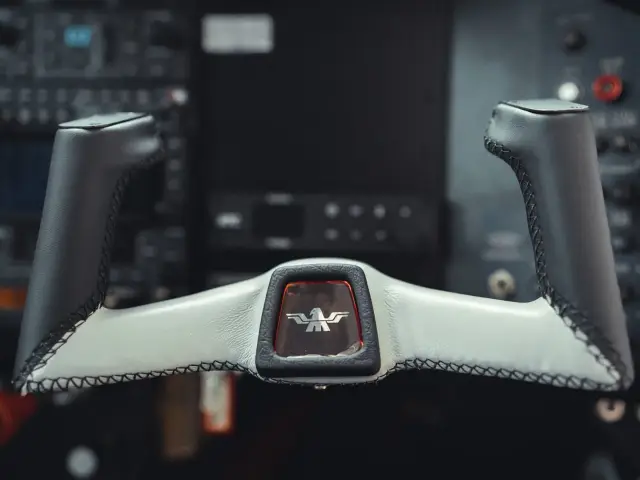

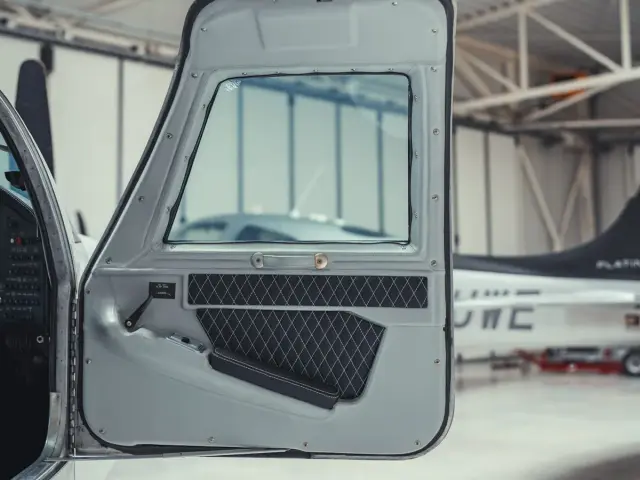

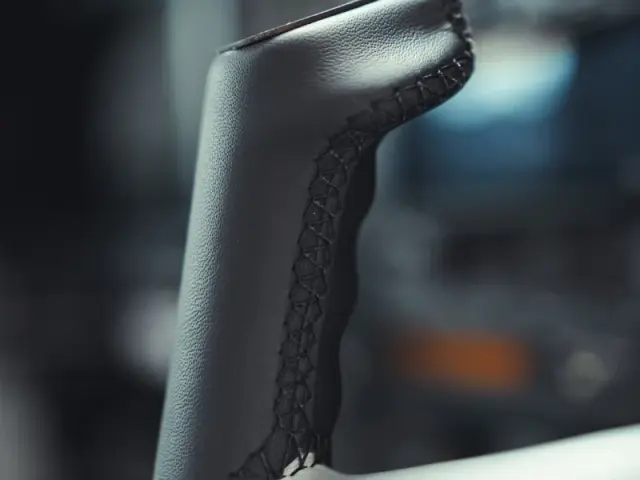

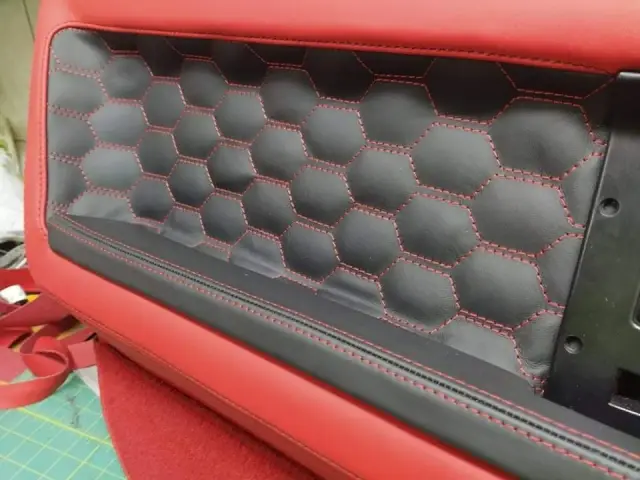

- Sidewalls refurbished, new control yoke and glareshield design
- Anti-corrosion treatment
Certification and paperwork
- Weight and balance check
- Electrical load change calculation
- Pitot-static check and IFR testing
- Magnetic compensation
- Fuel tank calibration

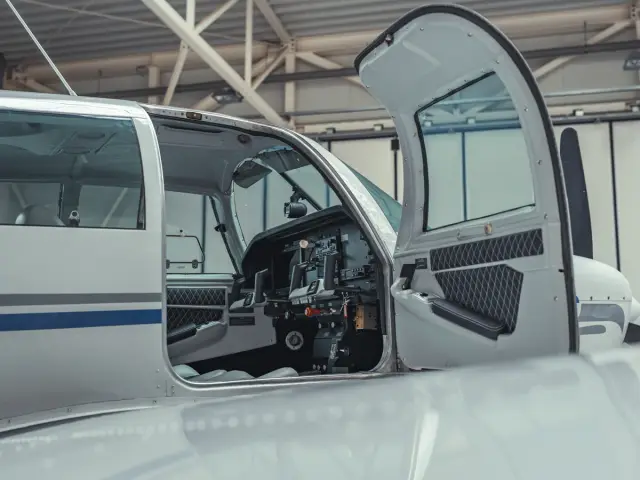

Project photos
