Mooney M20J
N707RJCustom panel with GI 275 instruments, GTN 650Xi, GNX 375 and a three-axis GFC 500.
- Aircraft
- Mooney M20J
- Scope
- Avionics · Autopilot · Instrument panel
- Location
- Kunovice, Czechia

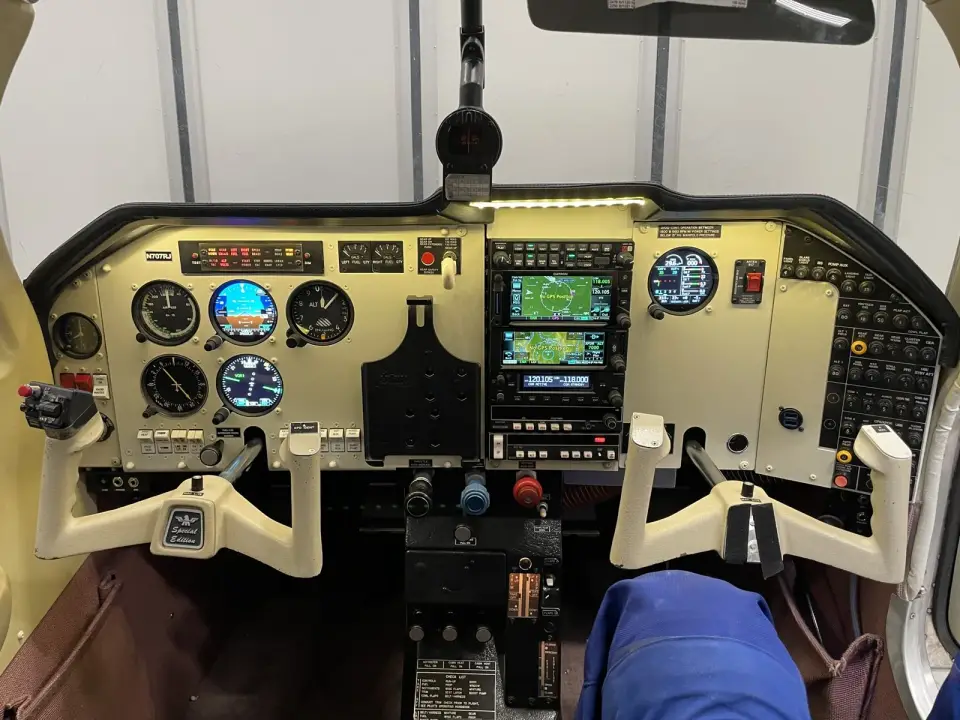

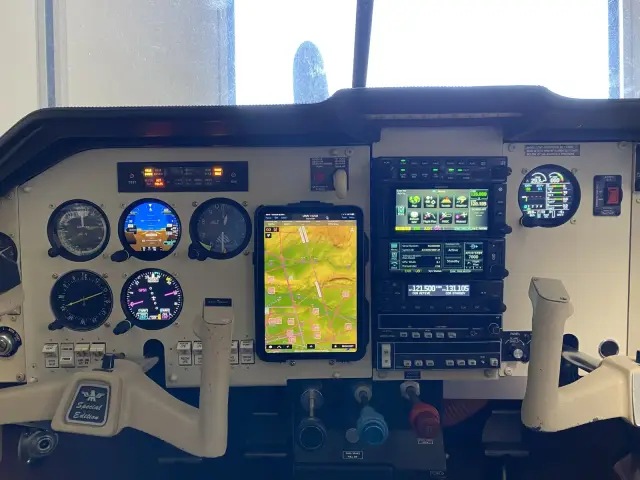

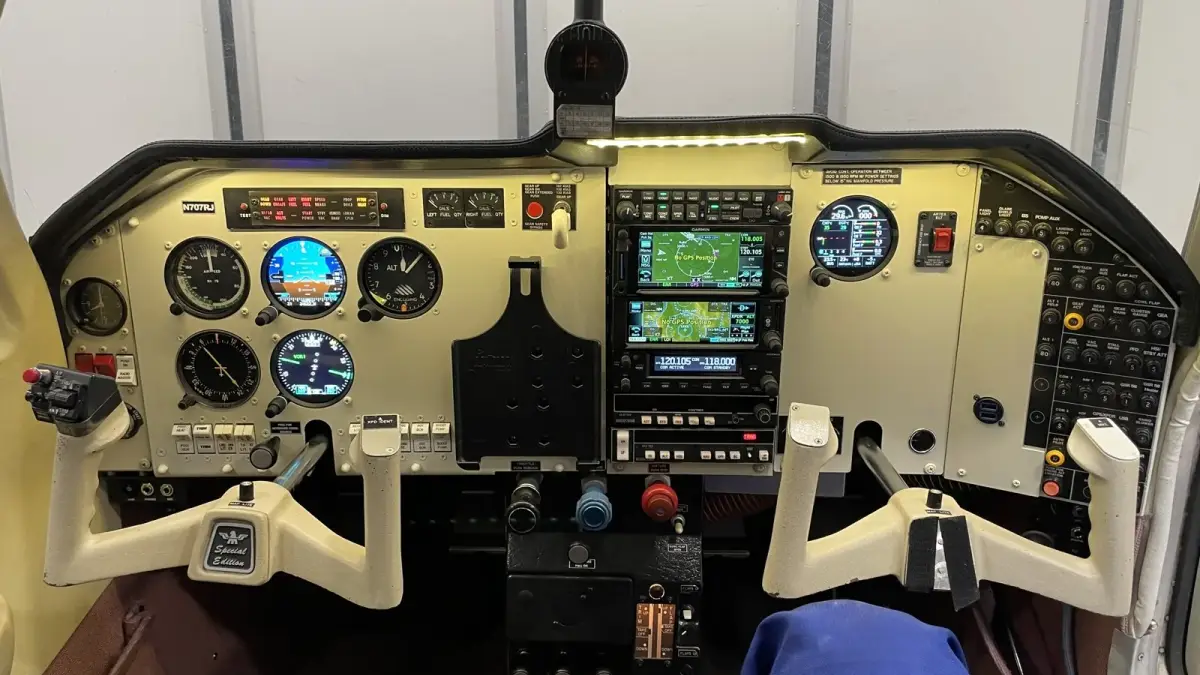

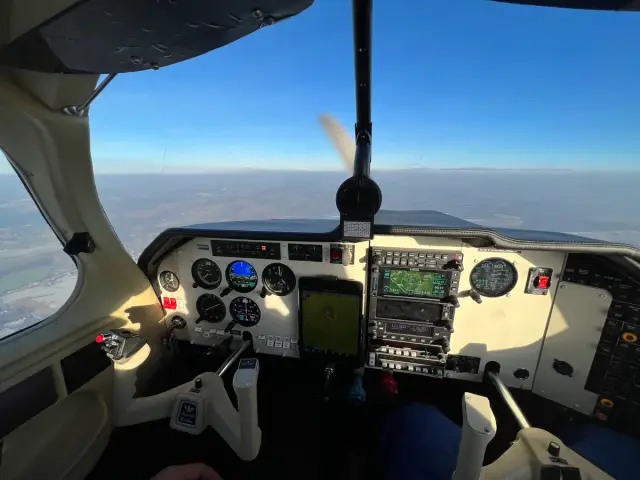

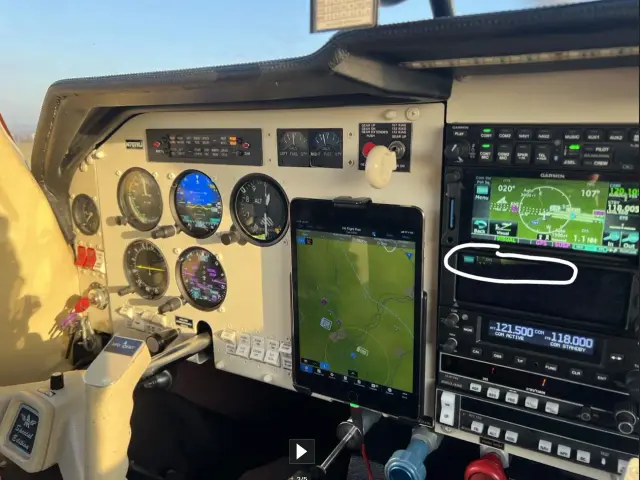

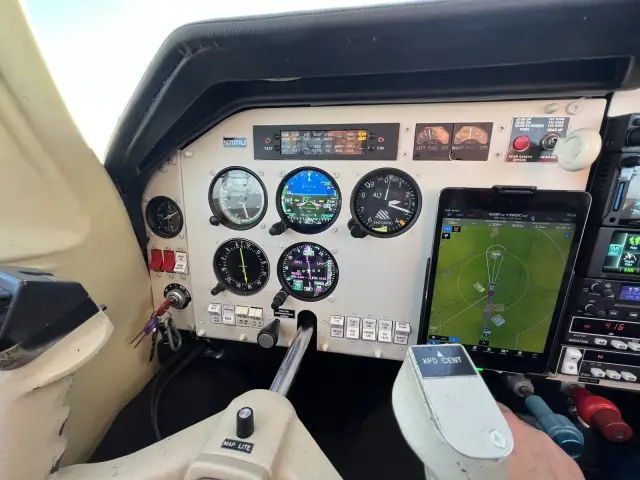

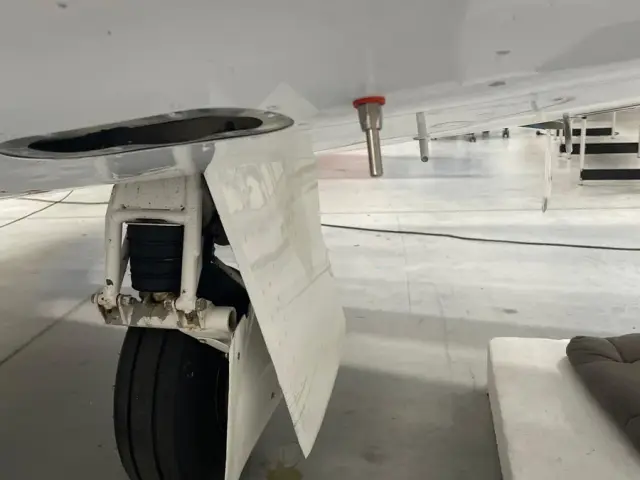

A Mooney M20J transformed with a custom panel: GI 275 instruments as PFD, HSI with standby ADI and engine display, a GTN 650Xi, a GNX 375 transponder and GPS, a GMA 345 audio panel and a three-axis GFC 500 autopilot with yaw damper. Panel and wire harness were built by our own team.

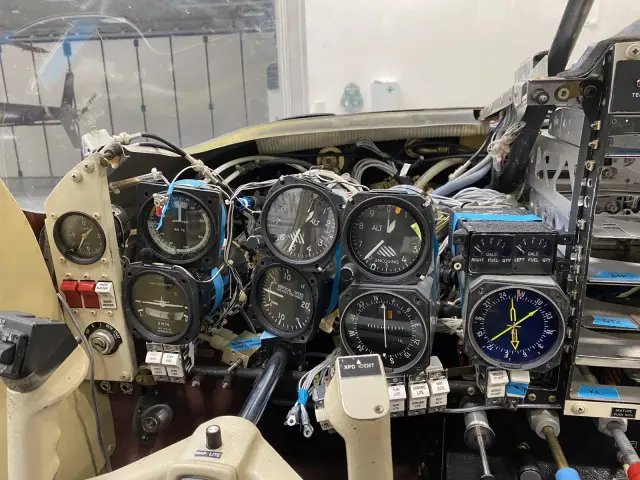

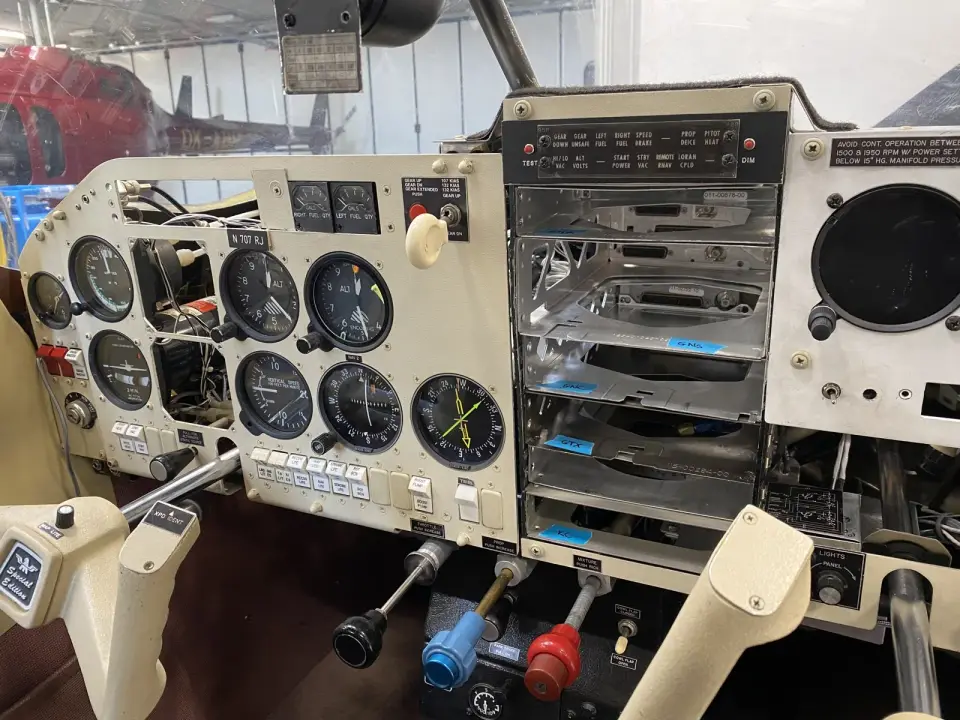

Before and after
Installed equipment
- Garmin GNC 255A NAV/COM
- Garmin GSB 15 USB port
- Garmin GA 35 GPS antenna
- Aveo Engineering position and strobe lights
- iPad holder
Quick view
Standby instruments
Garmin GI 275
Electronic instrument for primary or standby attitude, airspeed and altitude, with an autopilot interface.
Engine indication
Garmin GI 275 EIS
GI 275 engine indication display, supported by a GEA 24 and new fuel senders.

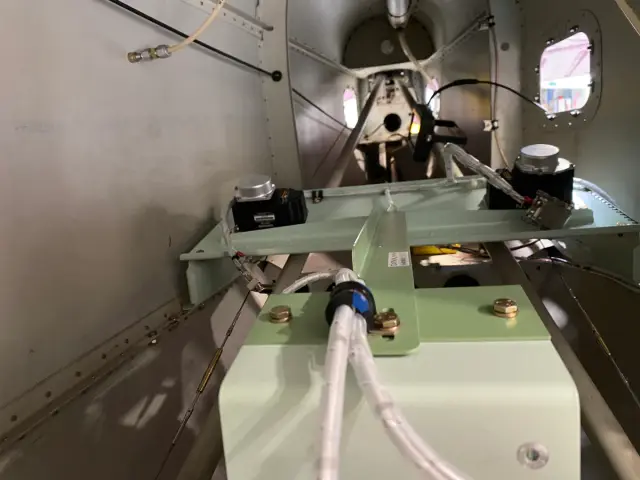

Autopilot
Garmin GFC 500
Digital autopilot that works with the new Garmin displays and holds altitude and course, with an optional yaw damper servo.
Panel and production

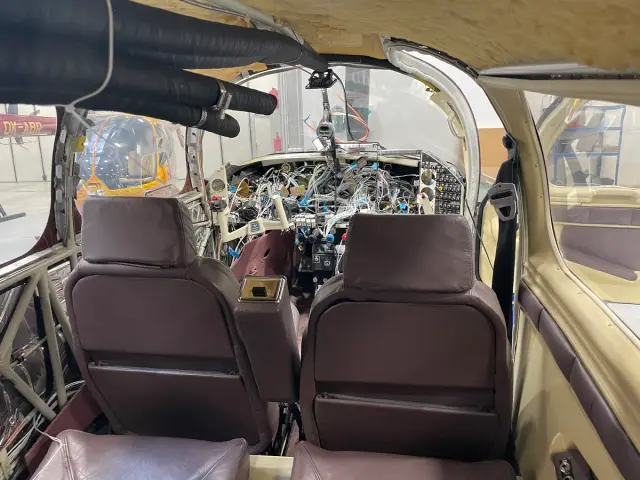

- Instrument panel produced and installed

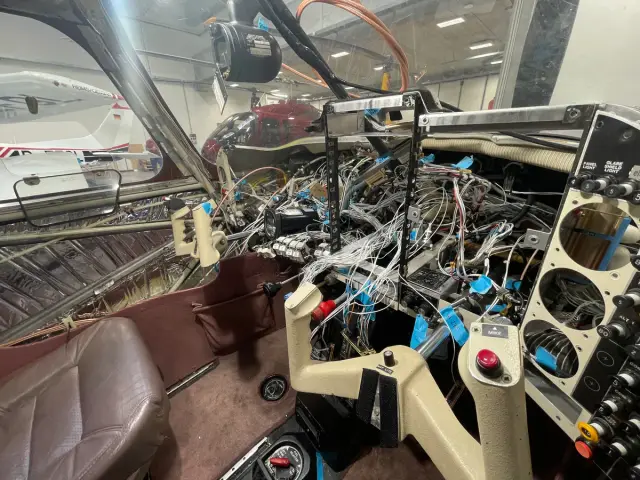

- Wire harness produced and installed
Certification and paperwork
- Pitot-static check and IFR testing
- Electrical load change calculation
- Fuel tank calibration
- Magnetic compensation
- Weight and balance check
