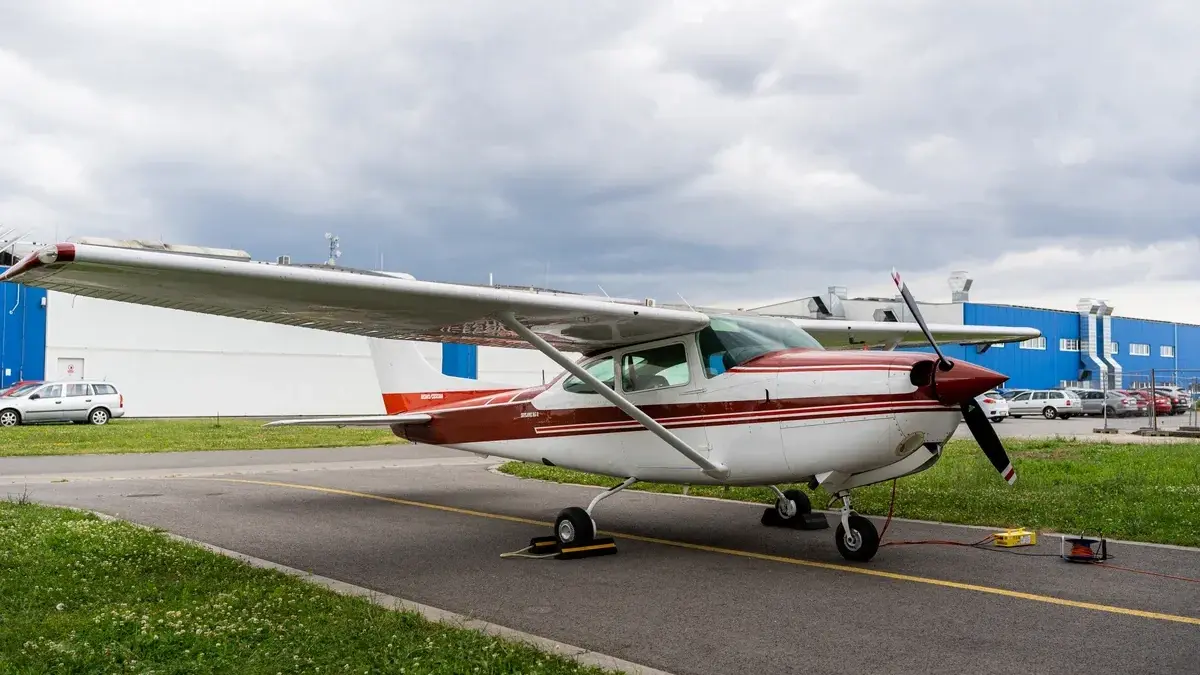

Cessna FR182 Skylane RG

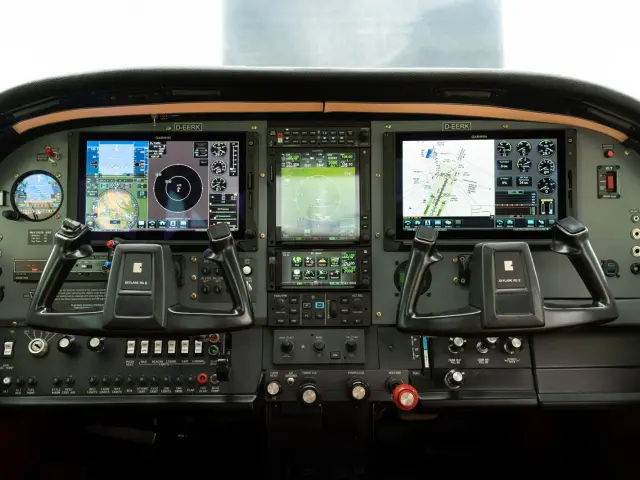

D-EERKA Skylane RG converted to a G500 TXi cockpit with two GTN navigators and a GFC 500 autopilot.
- Aircraft
- Cessna FR182 Skylane RG
- Scope
- Avionics · Instrument panel · Autopilot · Lighting
- Year
- 2022
- Location
- Kunovice, Czechia
A full Garmin conversion: G500 TXi displays, a GTN 750Xi and GTN 650Xi, a GI 275 standby, a GFC 500 autopilot and an ADS-B transponder, wired with a harness we produced ourselves. Planning, communication and the result impressed the owner.
Installed equipment
- AirTraffic AT-1 traffic awareness system
- Golze ADL 200 weather receiver
- Guardian AERO 551 CO detector
- Garmin GSB 15 USB charging port
- Whelen LED taxi/landing, navigation, beacon and strobe lights
- CiES fuel senders
- Marker beacon antenna
- External FLARM antennas
- Smart Glide
- Kannad 406 battery exchange
- Toggle switches replaced
Quick view
Flight displays

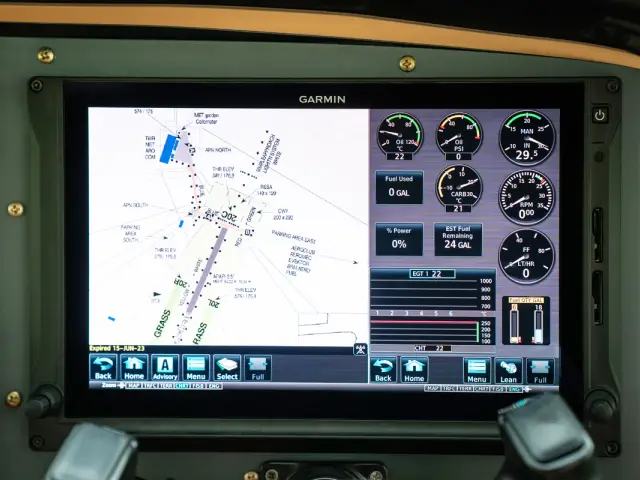

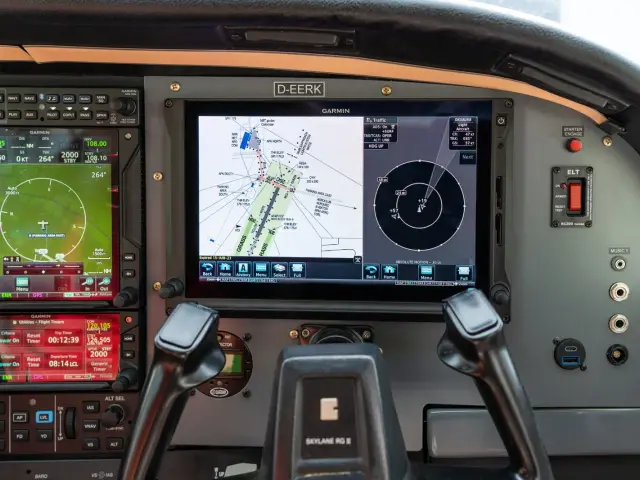

Garmin G500 TXi
Touchscreen PFD/MFD line built on the earlier G500 series, configurable to the available panel space.
GPS / NAV / COM

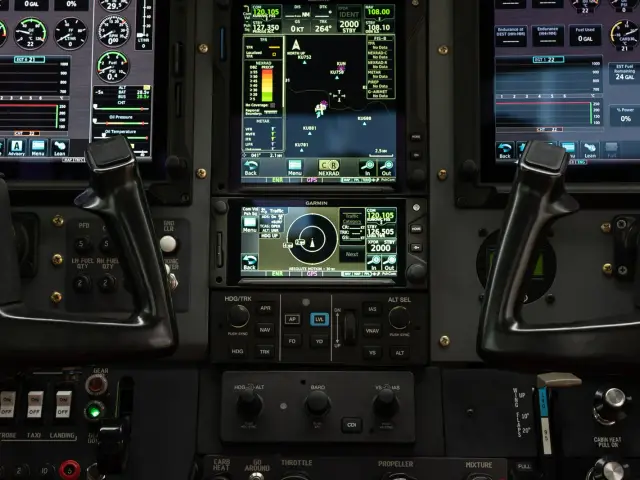

Garmin GTN 750Xi
Touchscreen GPS/NAV/COM navigator on the Garmin bus.
Standby instruments

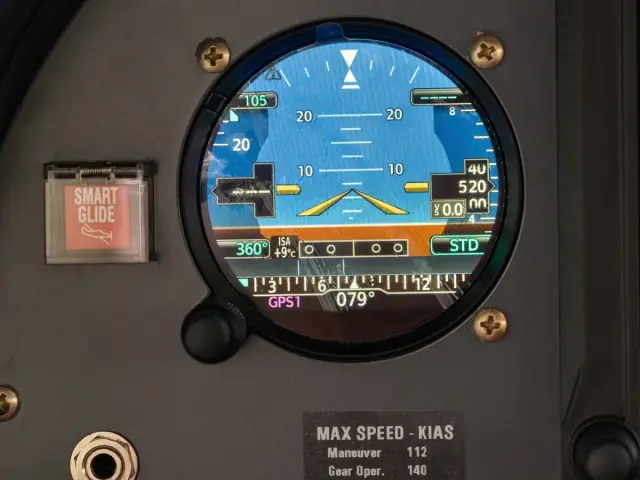

Garmin GI 275
Electronic instrument for primary or standby attitude, airspeed and altitude, with an autopilot interface.
Transponder / ADS-B
Garmin GTX 345R
Remote-mount transponder with ADS-B Out; adds ADS-B In traffic and weather.
Autopilot

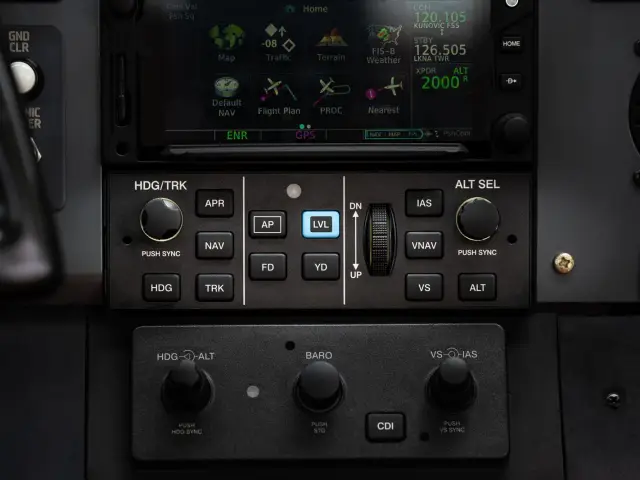

Garmin GFC 500
Digital autopilot that works with the new Garmin displays and holds altitude and course, with an optional yaw damper servo.
Panel and production
- Instrument panel produced and installed
- Wiring harness produced in our own workshop
- Engine preservation
Certification and paperwork
- Weight and balance check
- Pitot-static check and IFR testing
- Magnetic compensation
- Electrical load change calculation
- Fuel tanks calibration

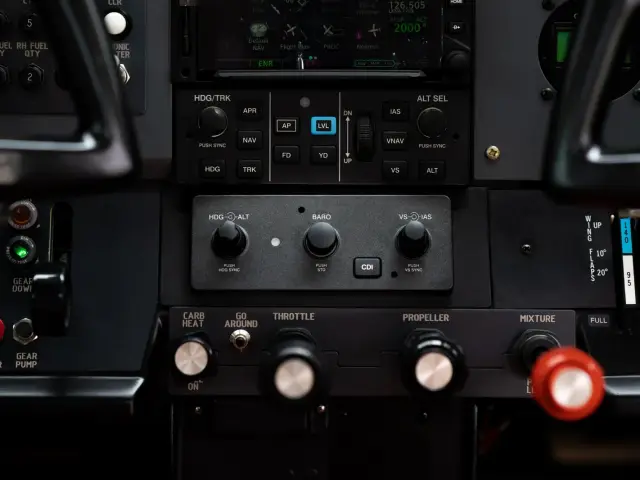

Project photos
From the owner
“Airteam has helped us to bring this airplane into the modern world. The full process was done really well, from planning, during the work, to after pick up. The process started with a really professional and experienced planning process. We discussed all items, the functionalities and the compatibility (which is not straight forward) During the works, there was a digital communication channel. We were provided regular updates. All questions and comments were answered within minutes. And the result is awesome! It is a different plane. Everything works as expected and was perfectly configured. I would pick the same the choice of avionics again, and I can recommend Airteam to anyone for the conversion!”
