Cessna 182S Skylane

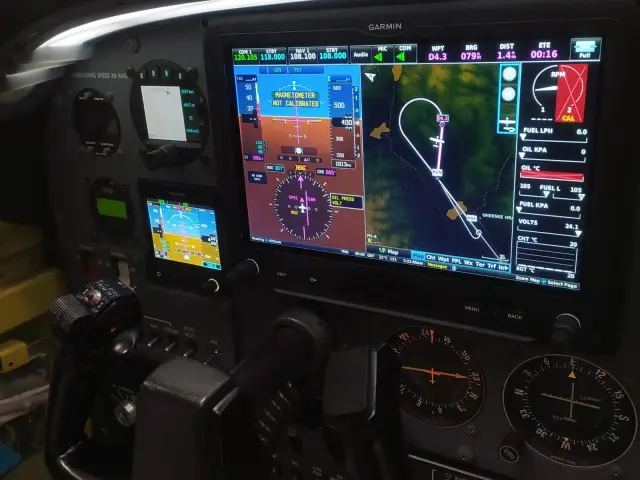

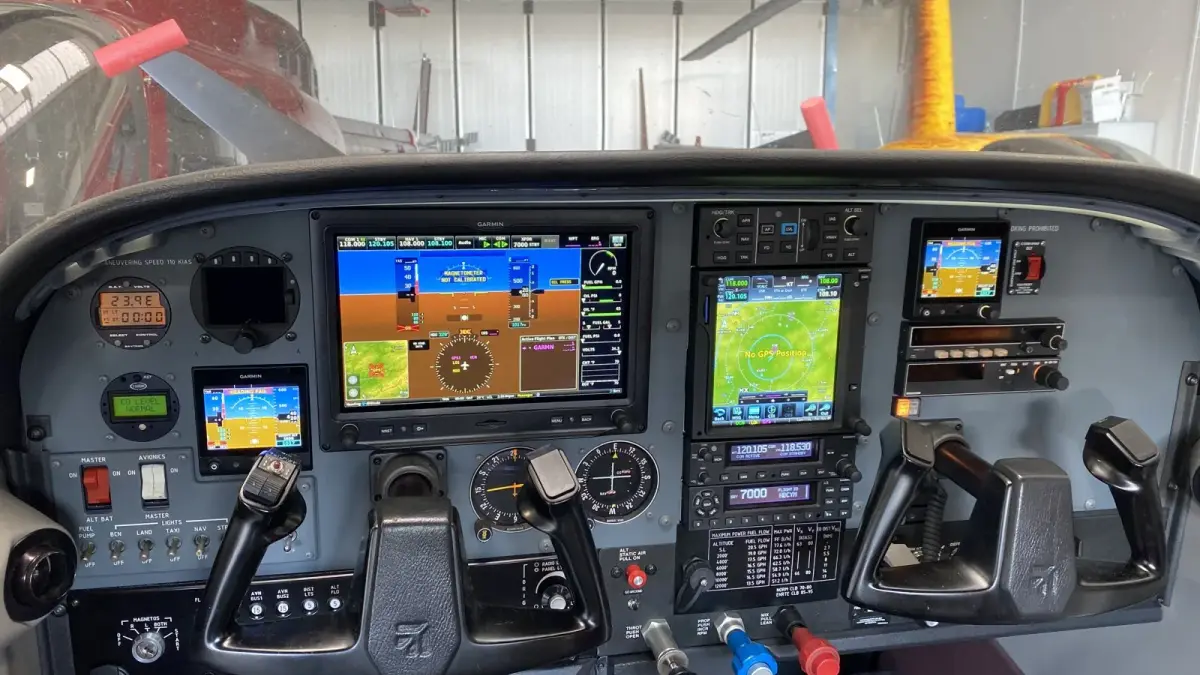

HB-CYMSteam gauges replaced by a custom G3X glass panel with GFC 500 autopilot.
- Aircraft
- Cessna 182S Skylane
- Scope
- Avionics · Instrument panel · Autopilot
- Year
- 2022
- Location
- Kunovice, Czechia
This Skylane lost its round gauges for a custom G3X glass panel designed around the owner's wishes, with a GFC 500 autopilot, a G5 standby instrument, AT-1 traffic with an external display and a CO detector. The panel was produced in our own workshop.

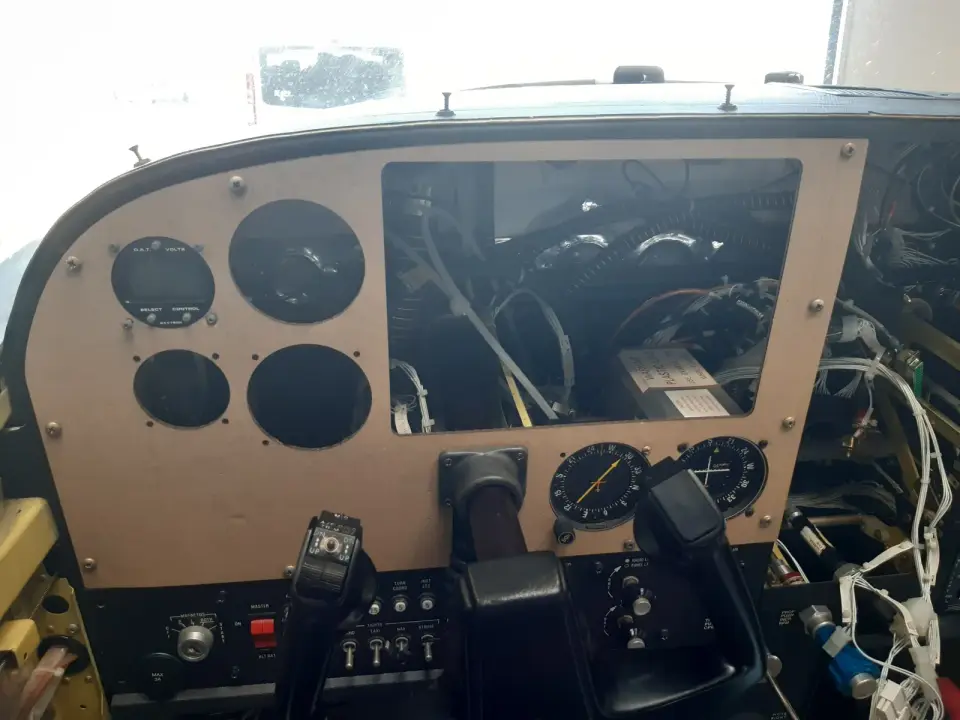

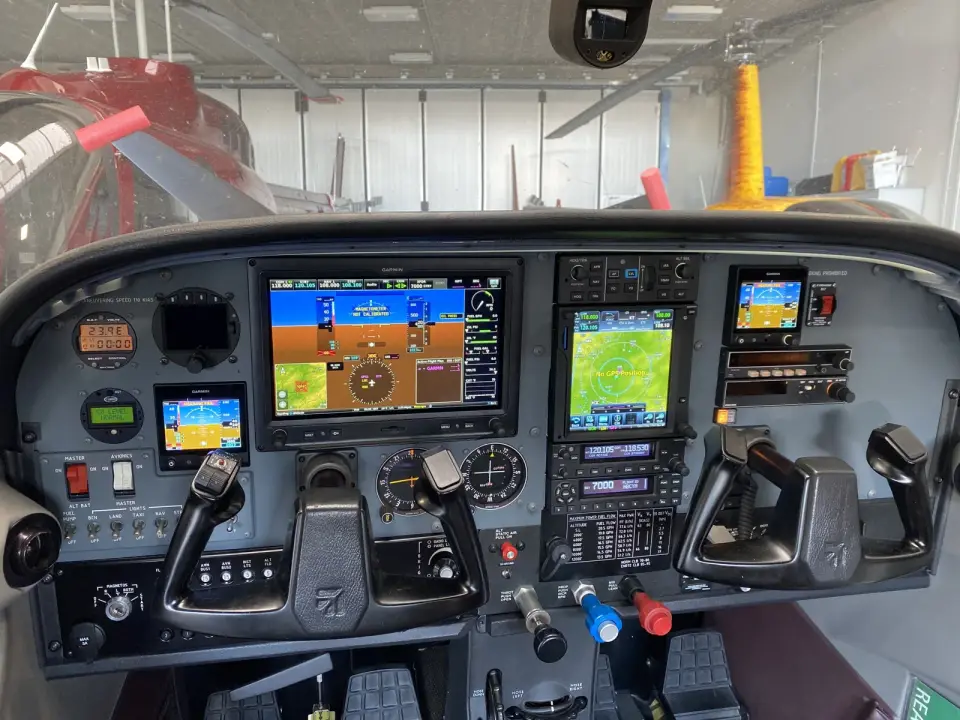

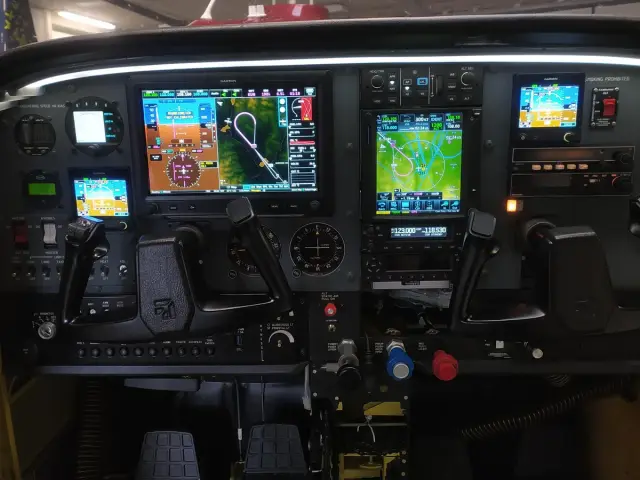

Before and after
Installed equipment
- Garmin GMA 245R audio panel
- AirTraffic AT-1 traffic awareness system with external display
- Guardian AERO 551 CO detector

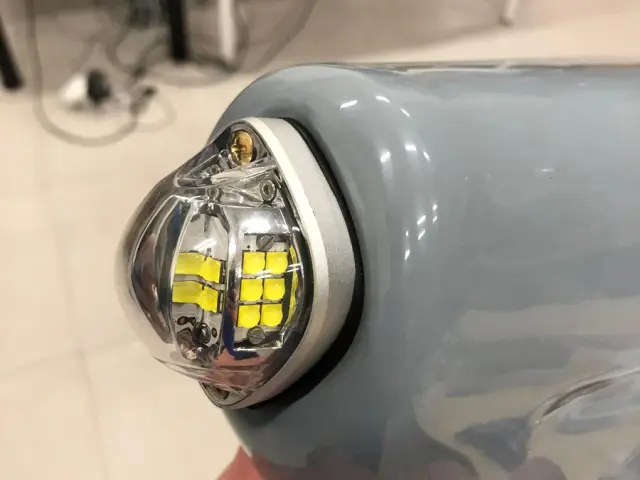

- Whelen LED position and strobe lights
- CiES fuel senders
Quick view
Flight displays
Garmin G3X Touch
Touchscreen PFD/MFD/EIS display for portrait or landscape panels, with an interactive moving map and ADS-B In traffic and weather. Discontinued by Garmin; AXIS is the successor.
Standby instruments

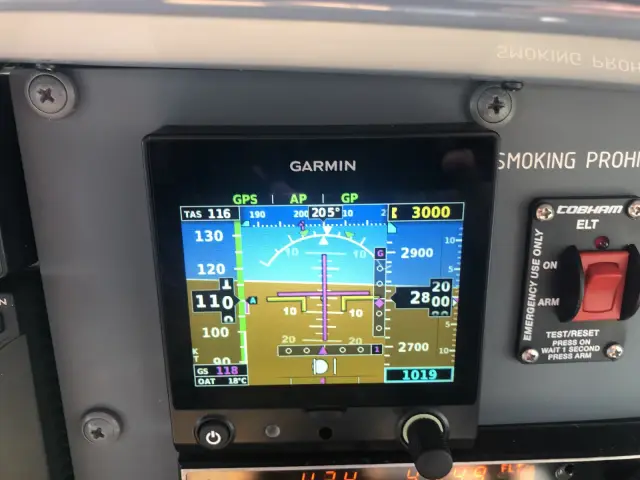

Garmin G5
Electronic flight instrument used here as a backup next to the main display.
Autopilot
Garmin GFC 500
Digital autopilot that works with the new Garmin displays and holds altitude and course, with an optional yaw damper servo.
Panel and production

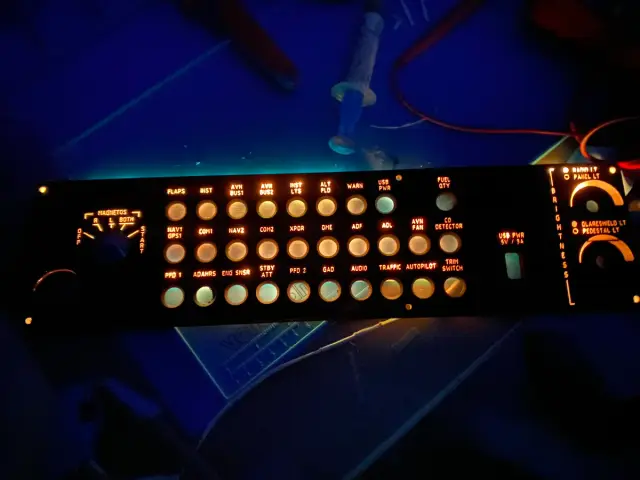

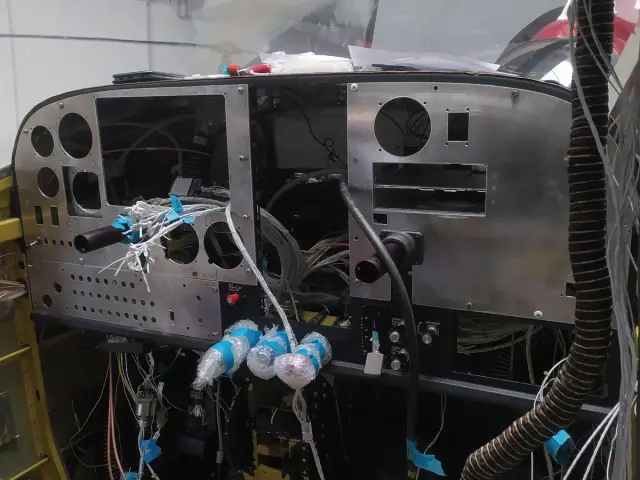

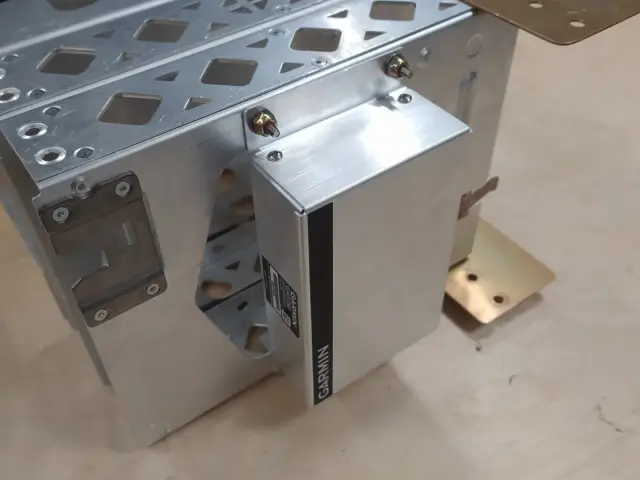

- Custom instrument panel produced and installed

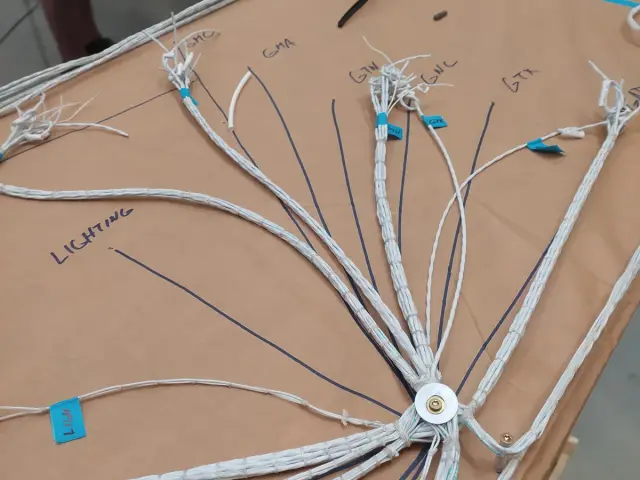

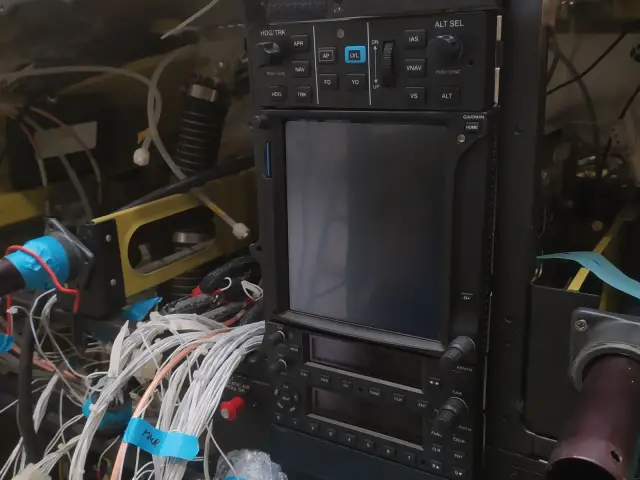

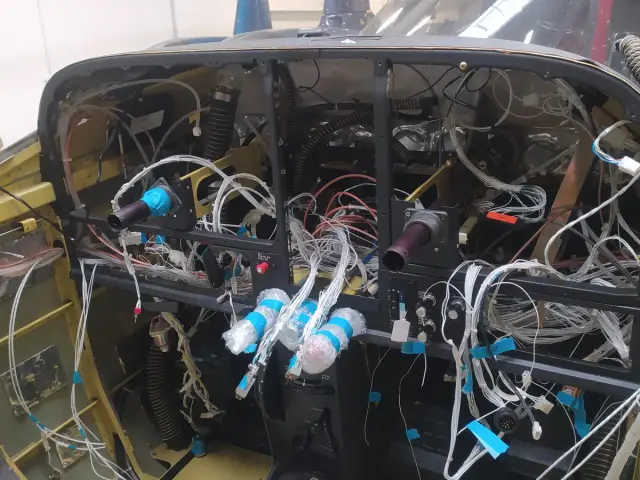

- New wiring harness built in our own workshop
Certification and paperwork
- Electrical load change calculation
- Magnetic compensation
- Fuel tanks calibration
- Pitot-static check and IFR testing
- Weight and balance check

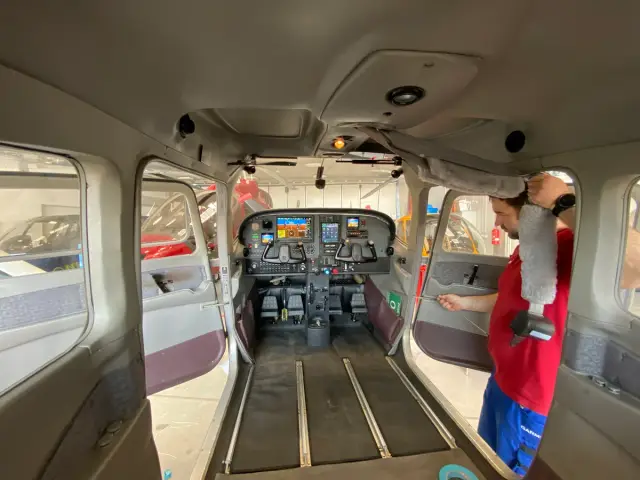

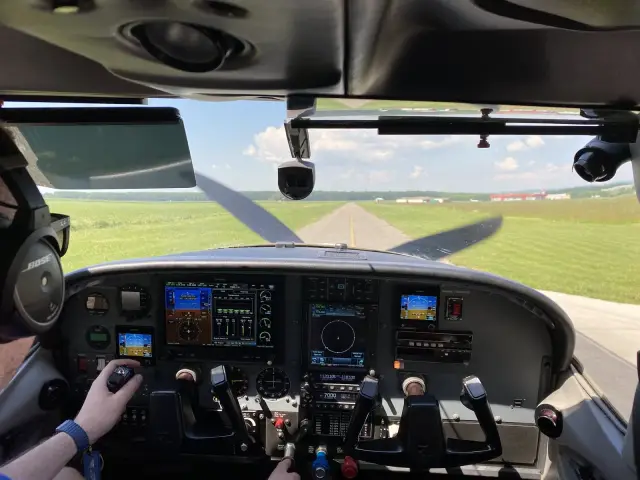

Project photos
From the owner
“The outcome of the avionics upgrade was way above our expectations. AirTeam helped us to get a flight deck that is comparable (if not more advanced) to the arguably most modern airliner flight deck, the A220. IMHO the aircraft has now the best C182 flight deck world wide.”
